VTOL

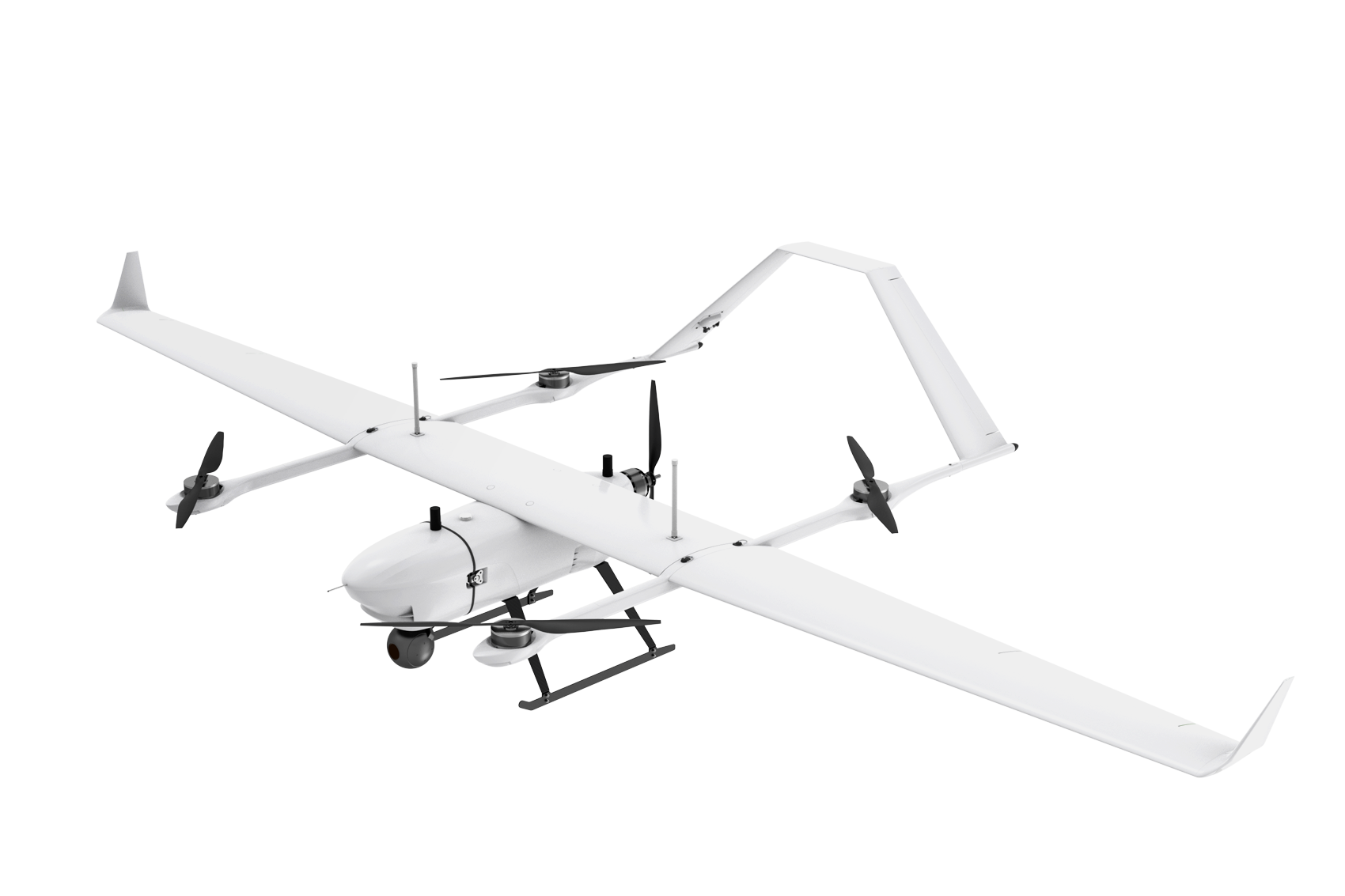

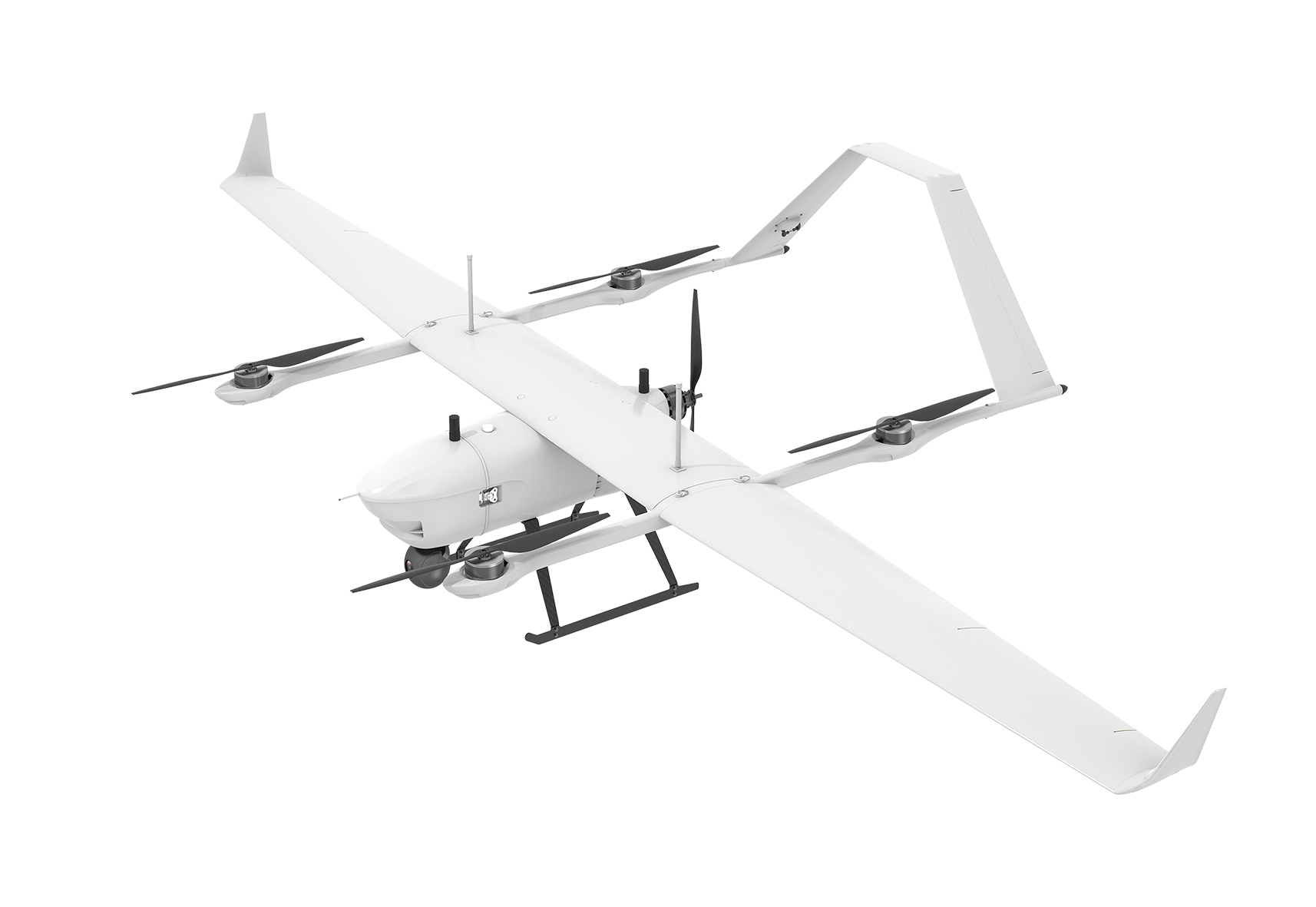

MILVUS T400
Long-endurance VTOL Fixed-Wing Drone
Long-Endurance VTOL Aircraft with an Aerodynamic Design for Maximized Energy Efficiency.
Equipped with Communication Systems and EO/IR Surveillance Cameras, it can fly up to 3 Hours of Mission Operation.
Comes with a EO/IR Camera as Standard, and can be customized to carry payloads such as a Surveying LiDAR or Camera (≤1kg) based on customer requirements.
Specification
| Flight Time | 180min (No Payload) |
|---|---|
| Cruise Speed | 21m/s, 28m/s (Max) |
| MTOW | 25kg |
| Aircraft Size | 4148 x 1913 x 846 mm (Propeller Excluded Size) |
| Max Payload | 1.5kg |
| Range | > 50km (Varies by Communication Equipment) |
| IP | IP43 |
| Weight | 14.45kg (Without Battery/No payload) |
| Application | Take off/Landing on Moving Vessels, Aerial Surveying, Reconnaissance, Payload Drop (Grenade, Cargo, etc.) |
| Battery | Li-PO 12S 57,000mAh (Battery Weight : 9.5kg) |
Payload Camera

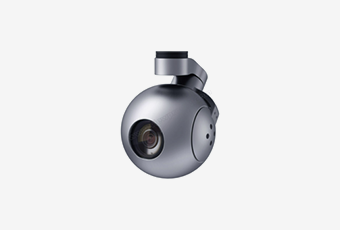

Gimbal Camera
- Zoom
- 40X Optical Zoom, 32X Digital Zoom
- Pixel
- 640X512 Detector Pixel
- Focus Length
- 19mm
- Foc Gimbal
- 3-axis Foc Gimbal
- Range
- 3km Laser Range finder

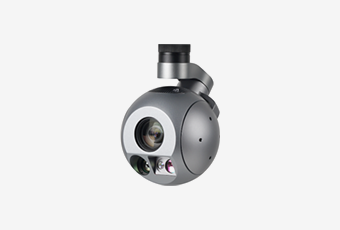

Auto Identification and Auto-tracking Camera
- EO
- 40X Optical Zoom, 32X Digital Zoom, 2.13MP / Full HD 1920X1080
- IR
- Focus Length : 35mm, Pixel : 640X512, Digital Zoom : 1~8X
- LRF
- 3000m Laser Range Finder Target GPS Coordinate Resolving
- AI
- Auto Identify and Tracking

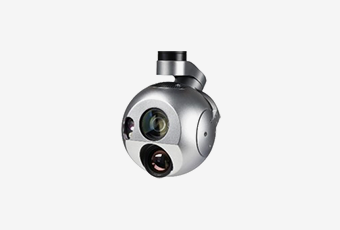

Object Tracking Gimbal Camera
- EO
- 40X Optical Zoom, 32X Digital Zoom
- IR
- Focus Length : 19mm, Detector Pixel : 640X512, 3000m IR Laser Rangefinder
- AI
- Auto Identify and Tracking
- Resolution
- 640*512 12㎛ Thermal
- Pixel
- 2.13MP Effective Pixel

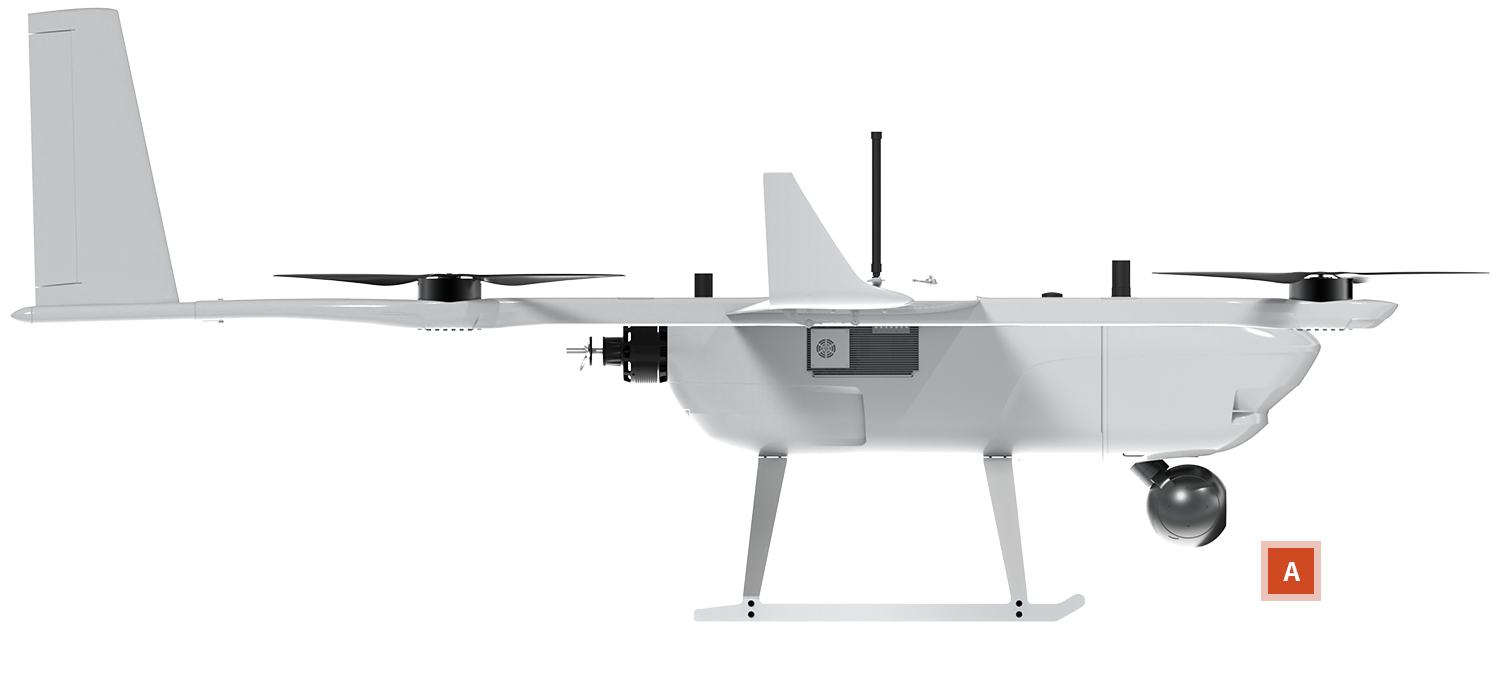

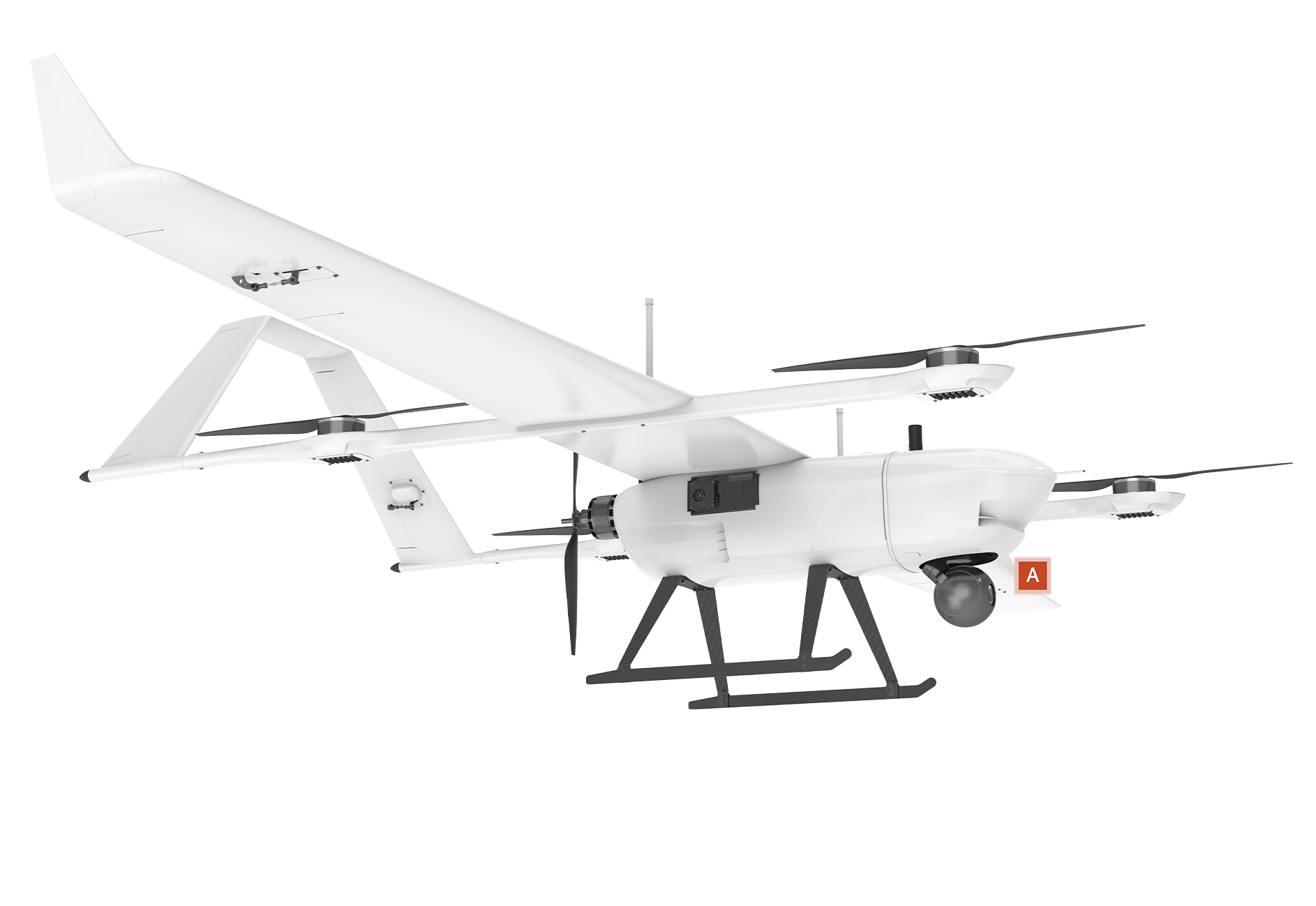

Product Payload
A
EO Camera
A
EO/IR Camera
A
EO/IR, LRF Camera
