Multicopter
PANDION Q1200
Small Mortar Ammunition-Dropping Attack Drone
The small mortar ammunition-dropping attack drone can carry up to three rounds and utilizes a wind direction sensor to measure wind speed and direction, achieving an attack accuracy of CEP within 5m from an altitude of 150m.
※ This attack drone was co-developed with Poongsan under the Civil-Military Technology Transfer (Commercialization) Project led by the Civil-Military Cooperation Promotion Agency.
Specification
| Flight Time | Over 30min |
|---|---|
| Flying Speed | 5m/s~7m/s, Over 15m/s(Max) |
| MTOW | Under 18kg |
| Aircraft Size | 1200x1200x341mm |
| Max Payload | 3kg±0.5kg |
| Weight | 17.5kg |
| Max ceiling(ASL alt) | 500m |
| Application | Wind Alignment via Wind Direction Sensor, Day/Night Surveillance & Reconnaissance with EO/IR, Ammunition-Dropping Attack Up to 3 Rounds |

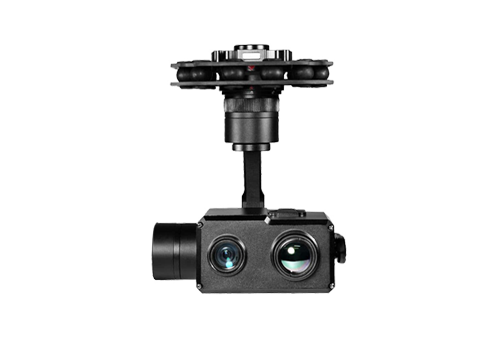

Payload Camera
EO/IR
- Resolution
- 640*480 17 μm thermal
- Fixel
- 4.08MP effective fixel
- Zoom
- 10x Optical Zoom / 4x Digital Zoom
- Gimbal
- 3-axis gimbal
- Connector
- Viewport Quick-release connector

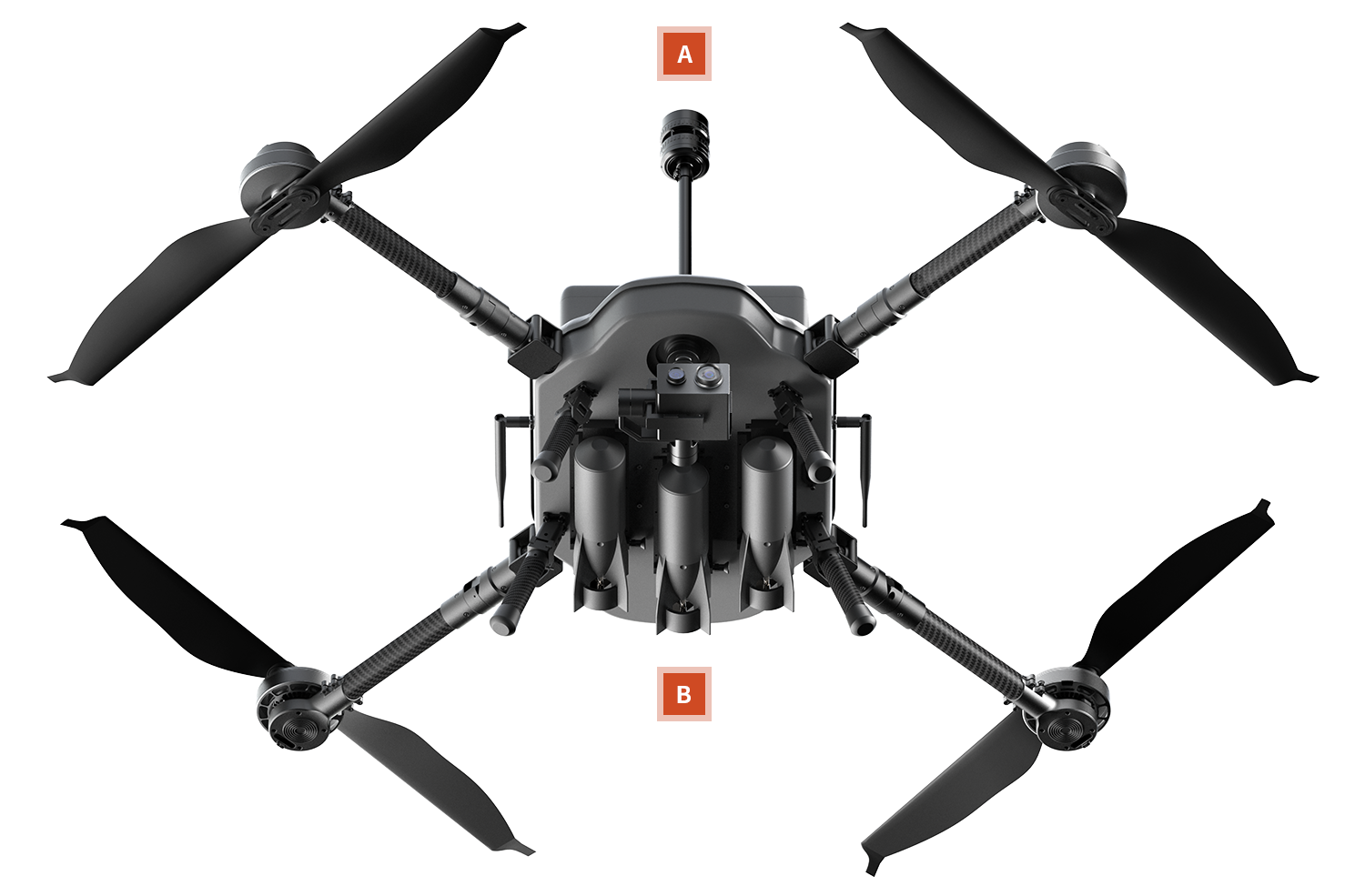

Product Payload
A
Wind Speed & Direction Sensor
B
Classified Information (Not Disclosed)
