Helicopter

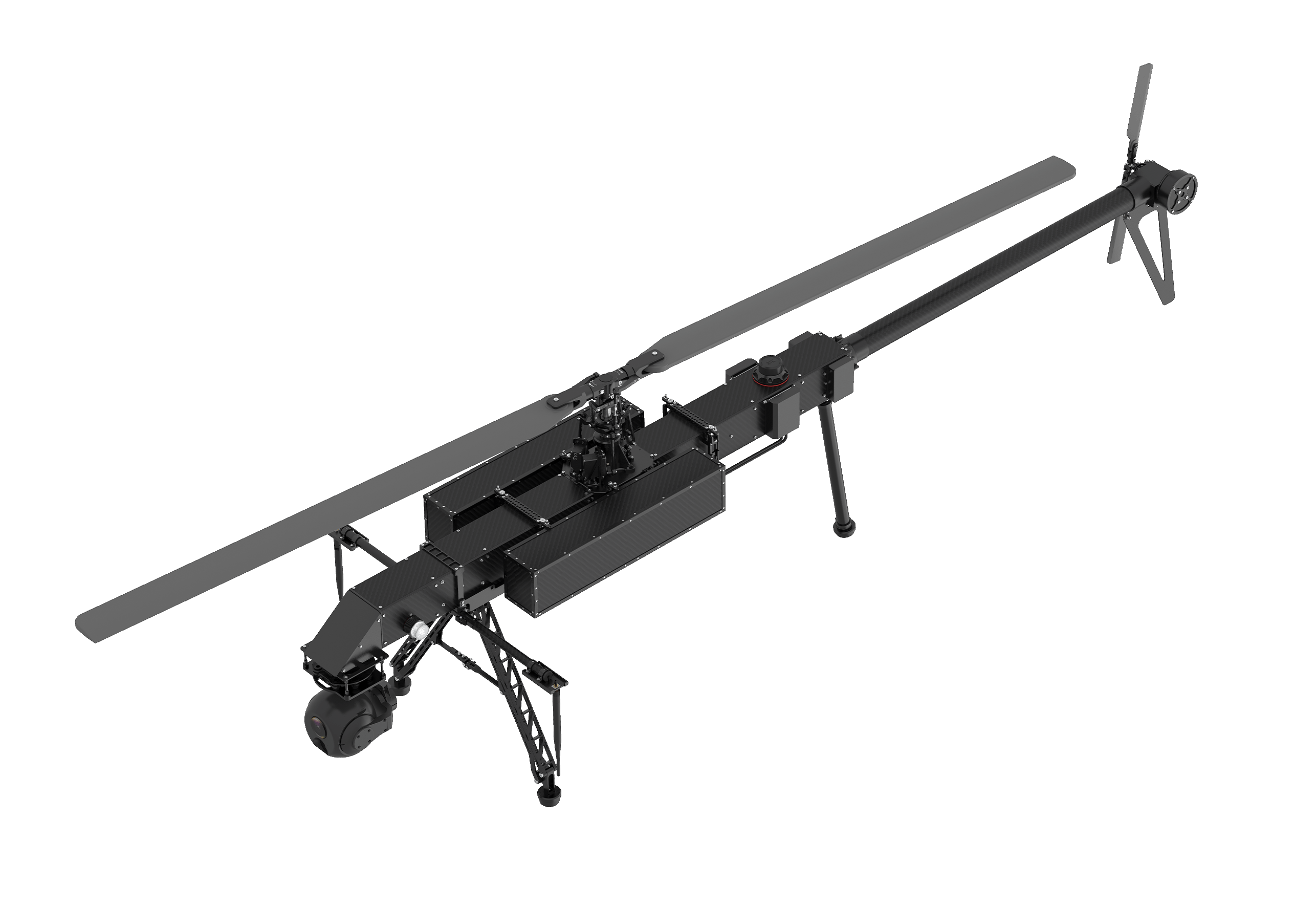

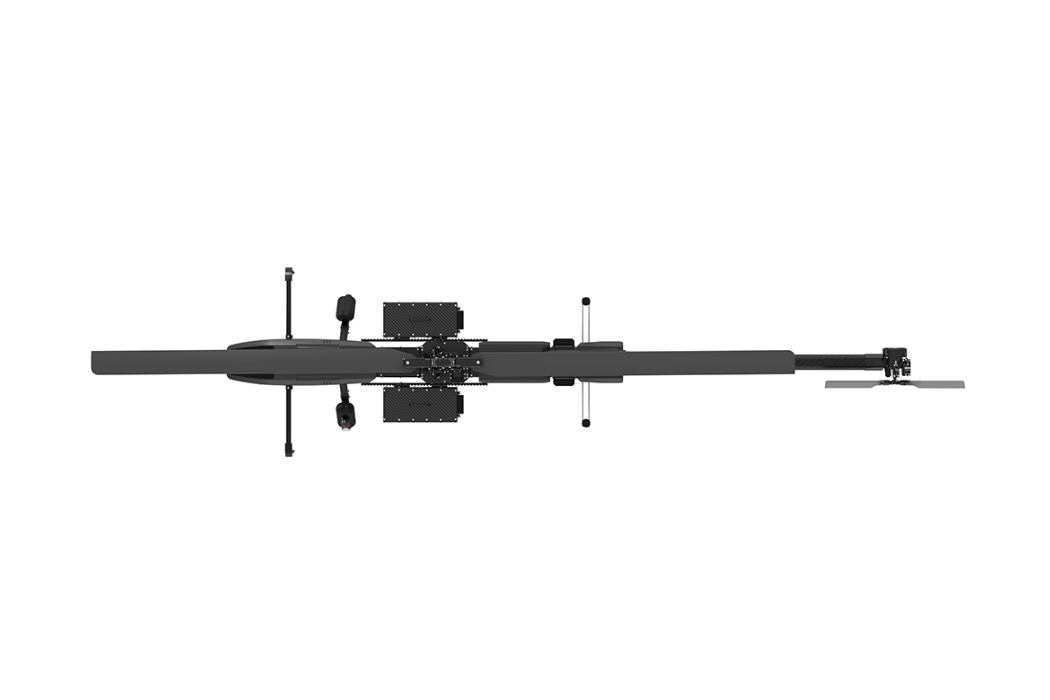

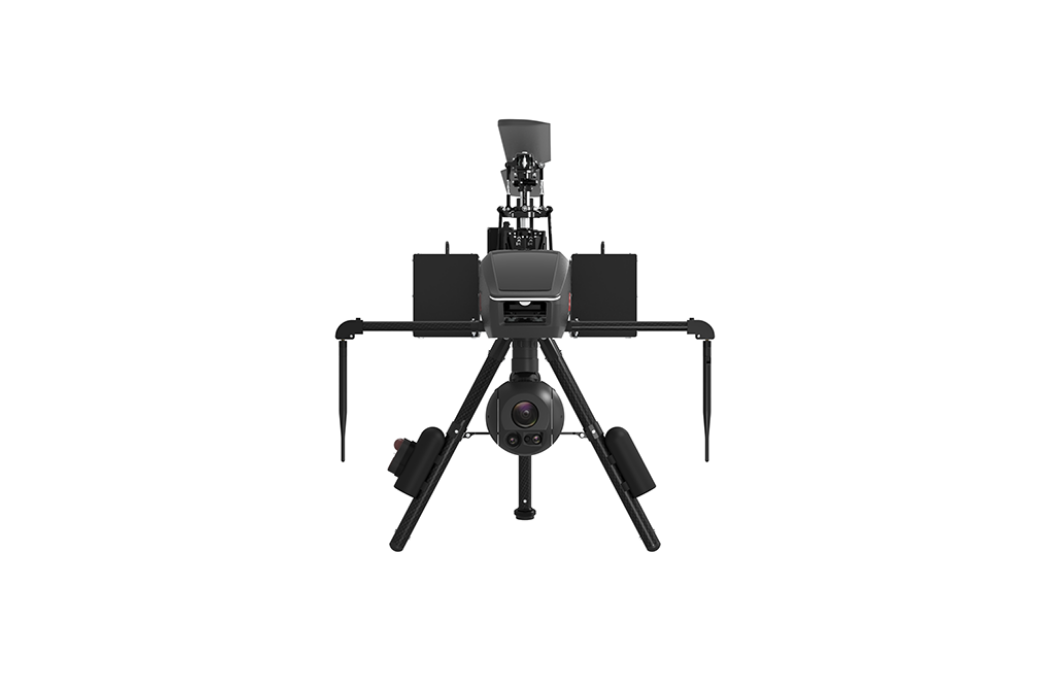

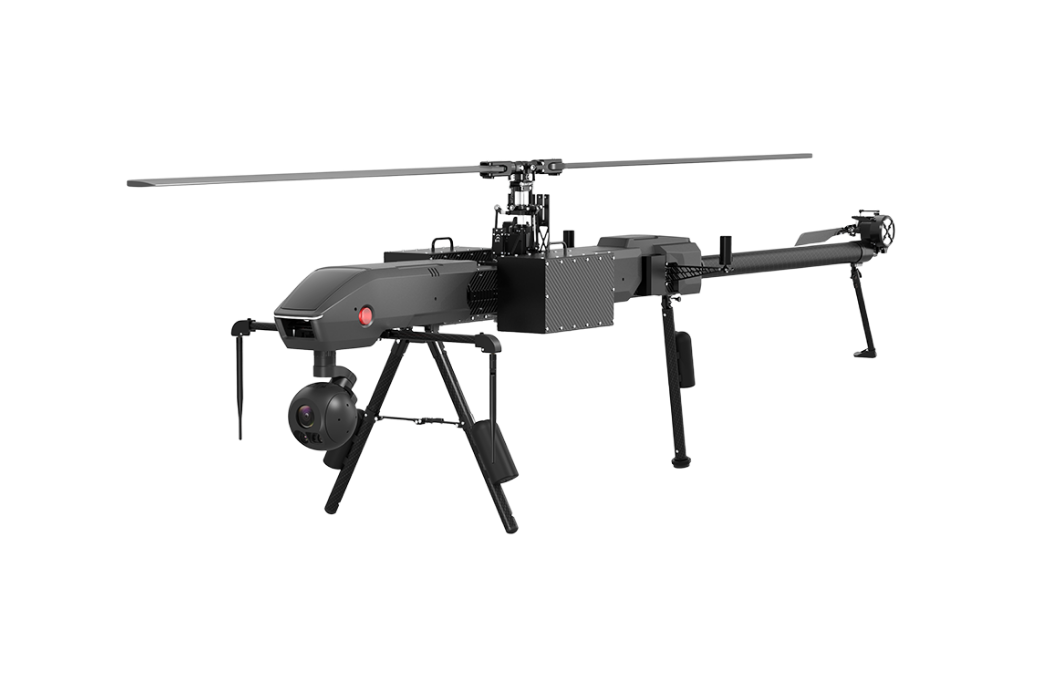

RUEPEL EM
Compact Modular Helicopter with Easy Detachment & Portability
Modular drone with mission adaptability for diverse operational needs, featuring independently developed technology, JTAC mission equipment, and ground systems for battalion-level multi-purpose reconnaissance.
Specification
| Flight Time | 60min |
|---|---|
| Cruise Speed | 10m/s |
| MTOW | Under 25kg |

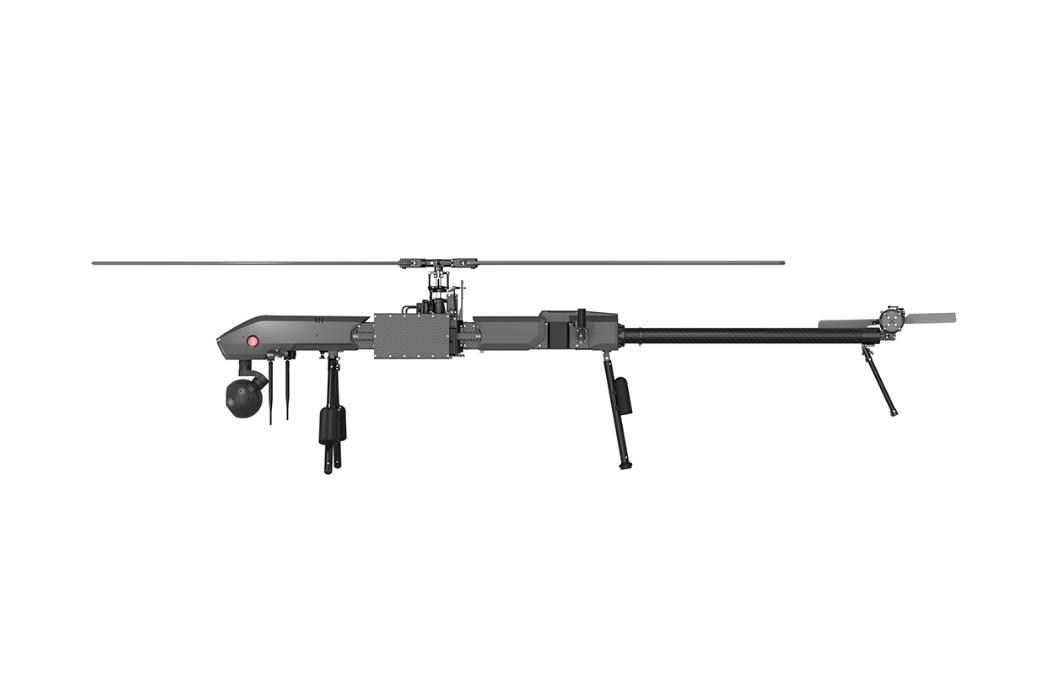

| Aircraft Size | 2172x661x461mm |
| Max Payload | 4.5kg |
| Range | 8km |
| IP | IP43 |
| Height | 600m |
| Application | Maritime & Mountain Reconnaissance, Military Operations & Training, Special-Purpose Surveying |

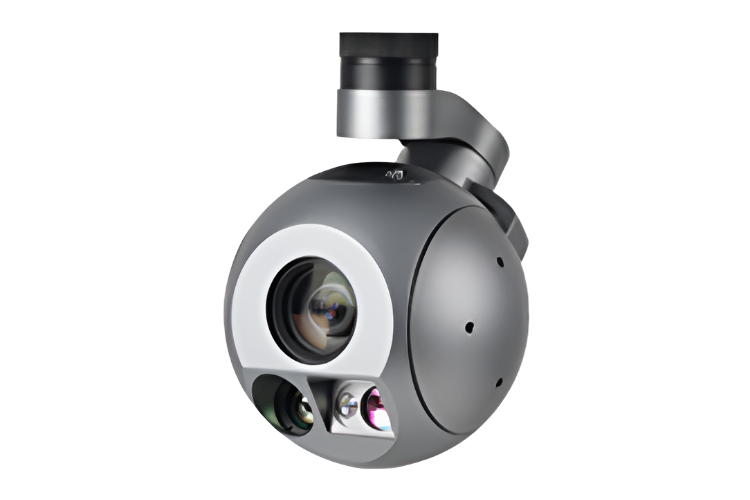

Payload Camera

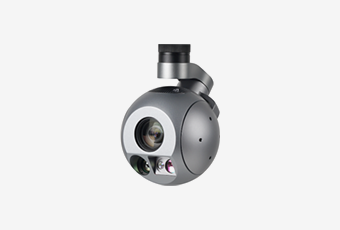

EO/IR
- EO
- FHD(1920x1080), 30x Optical zoom(Output : HD-SDI)
- IR
- Non-cool TYPE, SD(640x480), 8x Digital zoom(Output : NTSC)
- Weight
- 1.5kg
- Size(L/W/H)
- 234 X 197 X 262mm
- IP
- IP43
- Temperature Environment
- -20~43℃
JTAC Equipment
- ALTD
- STANAG 3733 Module (Rate 7~21Hz, 18~33VDC, 30W)
- SWIR
- 1.0um~1.65um, SD(640x512)(Output NTSC, 1.8W at 60Hz)
- EO
- FHD(1920x1080), 30x Optical zoom(Output : HD-SDI)
- IR
- Non-cool TYPE, SD(640x480), 8x Digital zoom(Output : NTSC)
- Weight
- 1.5kg
- Size(L/W/H)
- 234 X 197 X 262mm
- IP
- IP43
- Temperature Environment
- -20~43℃

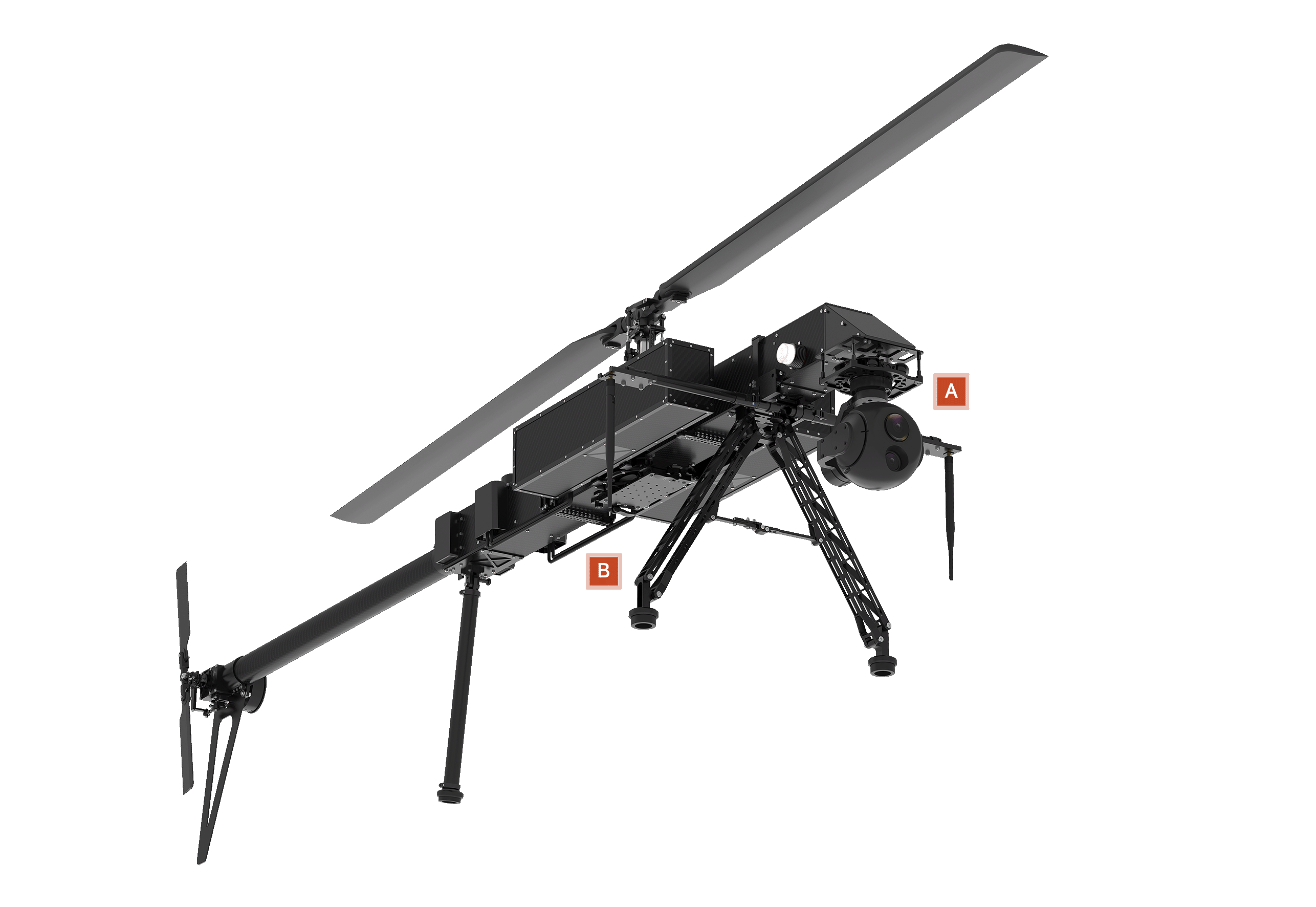

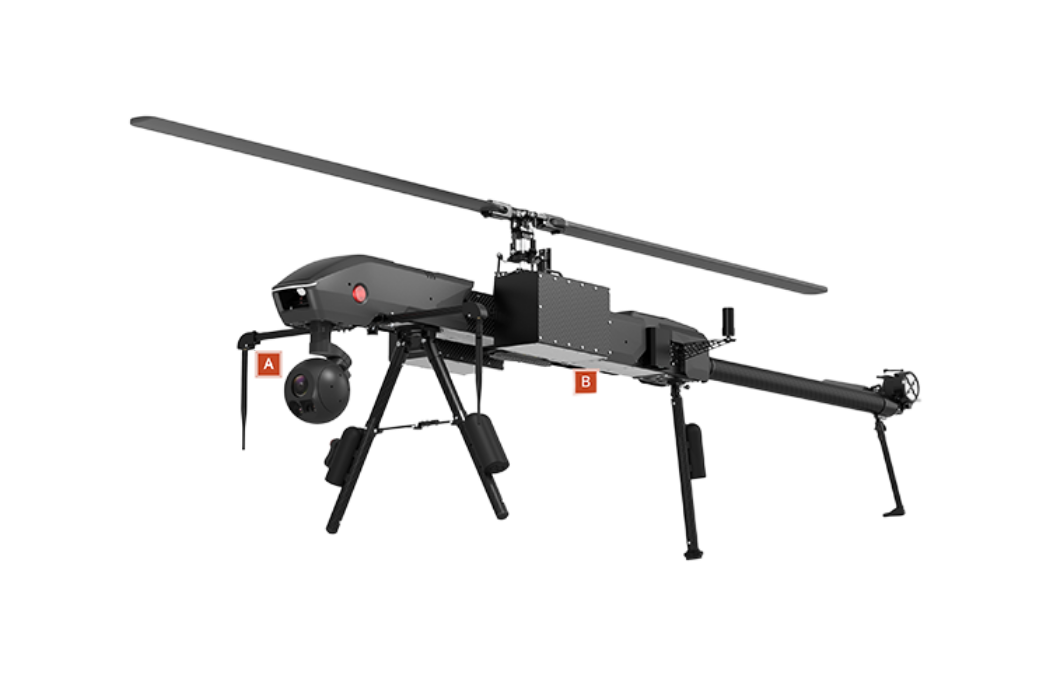

Product Payload
A

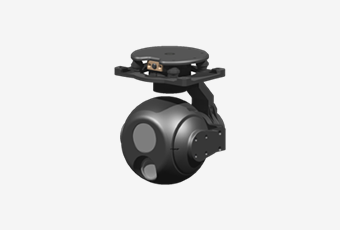

EO/IR Camera
A
JTAC Equipment
B
Searchlight
B

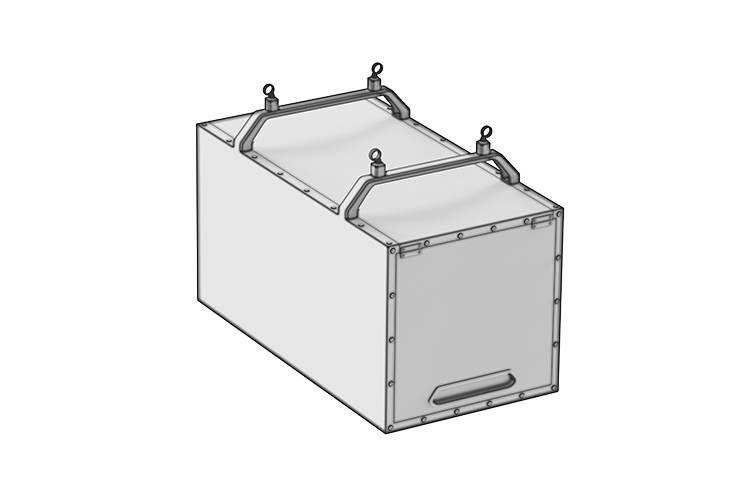

Drop Box
B

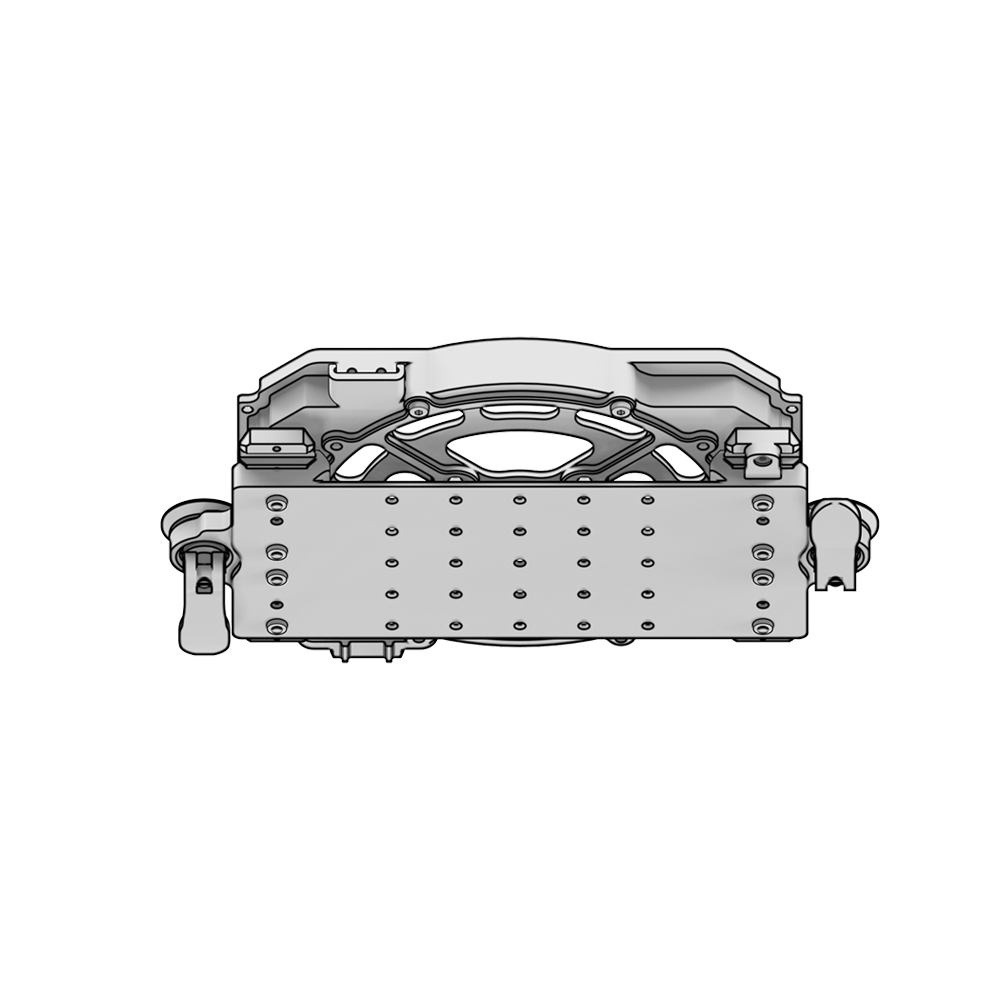

Multi-Purpose Drop Device
