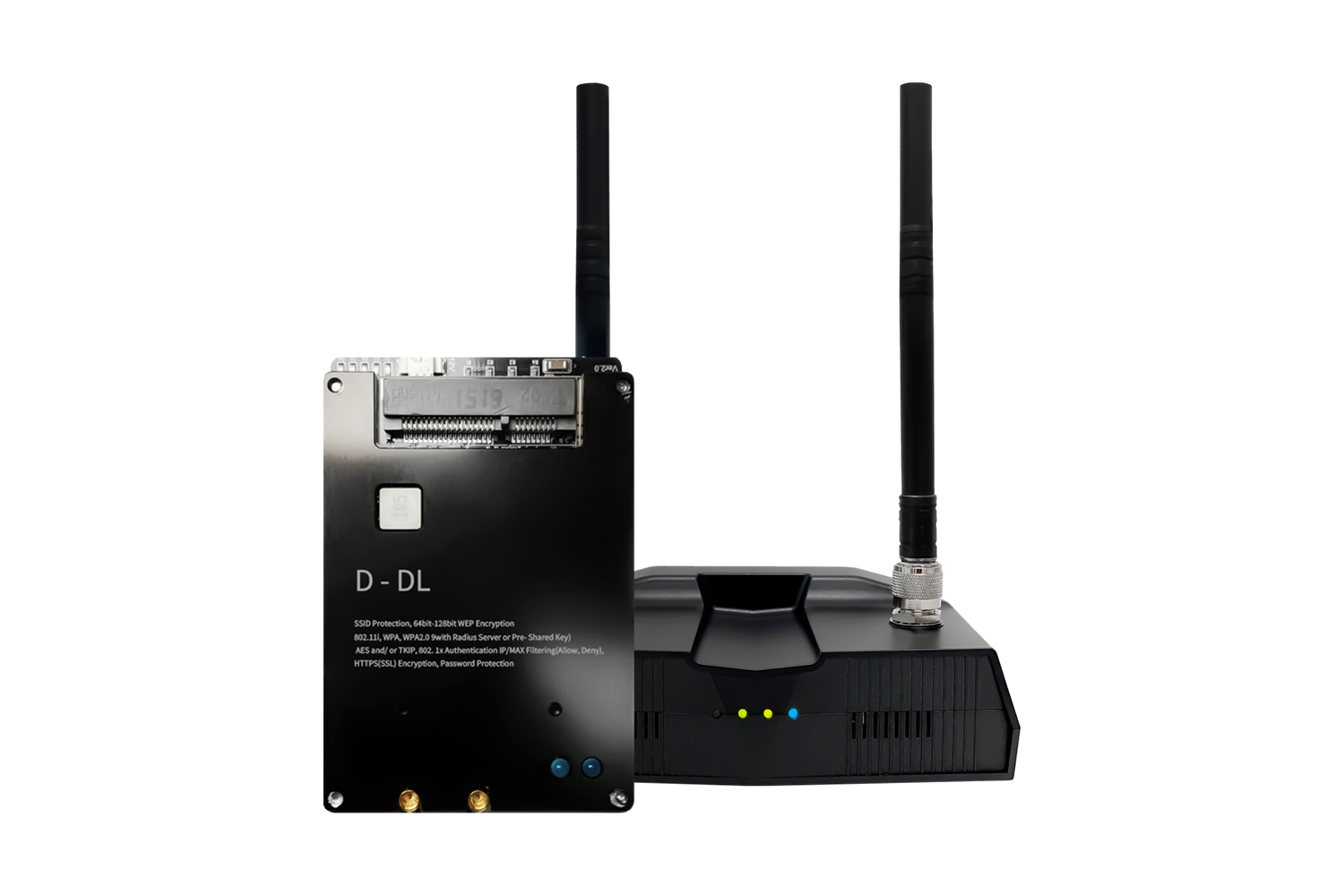

D-DL
High-Performance Ultra-Compact Data Link for Drones
DRONEiT DL-V2 is a dedicated ultra-compact data link for drones, supporting 2.4GHz bands and 5030–5150MHz bands.
It enables FHD video and data transmission up to 5km.
01
Drone-Specialized Interface
UART1, UART2 Serial Ports / Micro 5-Pin FC Telemetry Port / LAN Port for GCS & Camera Connection / USB-A & USB-C Ports
02
Board Size Options
Basic Size (105mm × 100mm) for Stable Support / Compact Mini Size (80mm × 50mm) for Small Drones
03
Wide Frequency Range
Supports 2.4GHz, 5.8GHz, 5030~5130MHz / Complies with Radio Act & Wireless Equipment Regulations in Korea (10mW/MHz)
04
Fast & Stable Data Transmission
Video & Data Transmission (3km, 6.5Mbps–300Mbps Data Rate) / Custom Data Transmission (GPS & Sensor Data via UART)
05
Seamless Encryption Module Integration
Built-in Board Design for easy Plug-and-Play Setup
Specification
| Wireless | [Standards] IEEE802.11a/n/h/s for Wireless LAN IEEE802.11i for Wireless Security IEEE802.3u for 10/100/1000T(X) Full Duplex [Operation Mode] Access Point, Bridge [Wireless Standard] IEEE802.11a/b/g, 802.11n [Frequency Range] 2400~2483Mhz, 5500~5825Mhz, 5030~5150Mhz [Rate] Optimal 20Mbps, Max 300Mbps [Modulation] 11n (HT20/HT40) : MCS0 ~ MCS15 (OFDM) [Sensitivity] 5.8GHz, OFDM 6Mbps : -90dBm, 54Mbps : -73dBm [Bandwidth] Ability to configure 20 and 40MHz channel bandwidth, Transmit Power Control(TPC) [Device Managements] Administrator ID/PW, Station & AP Associated Information System Information, Telnet/SSH Server Support Web-based Configuration, Upgrade through HTTP/TFTP Event Log (WEB Interface), Factory Default |
|---|---|
| Network | [Interface] 2 x Serial Ports, 1 x micro USB Port(USB to Serial) 2 x USB2.0 Ports, 1 x LTE PCI-E Slot, 1 x USIM Slot 1 x Ethernet 10/100/1000BASE-T(RJ-45) Auto negotiation speed [LAN / WAN] IP, Subnet, Gateway [DHCP] Server/Client [Protocol] SSID Protection, 64bit-128bit WEP Encryption, 802.11i, AES and/or TKIP, WPA2.0(with Radius Server or Pre- Shared Key), WPA, 802.1x Authentication, IP/MAC Filtering(Allow, Deny), HTTPS(SSL) Encryption, Password Protection [Operating Range] 5~20Km at LOS [Operating Temperature] -20°C ~ +70°C |
| General | [Operating Temperature] -20℃ ~ +70℃ [Humidity] 5% to 95%(non-condensing) [Power] USB-C(1.5A) or DC Jack 5V [Dimension] 105 x 100 x 18 mm (Basic), 80 x 50 x 25 mm (Mini) / Width x Length x Height [Weight] 95g(Basic), 58g(Min) / PCB Only |
