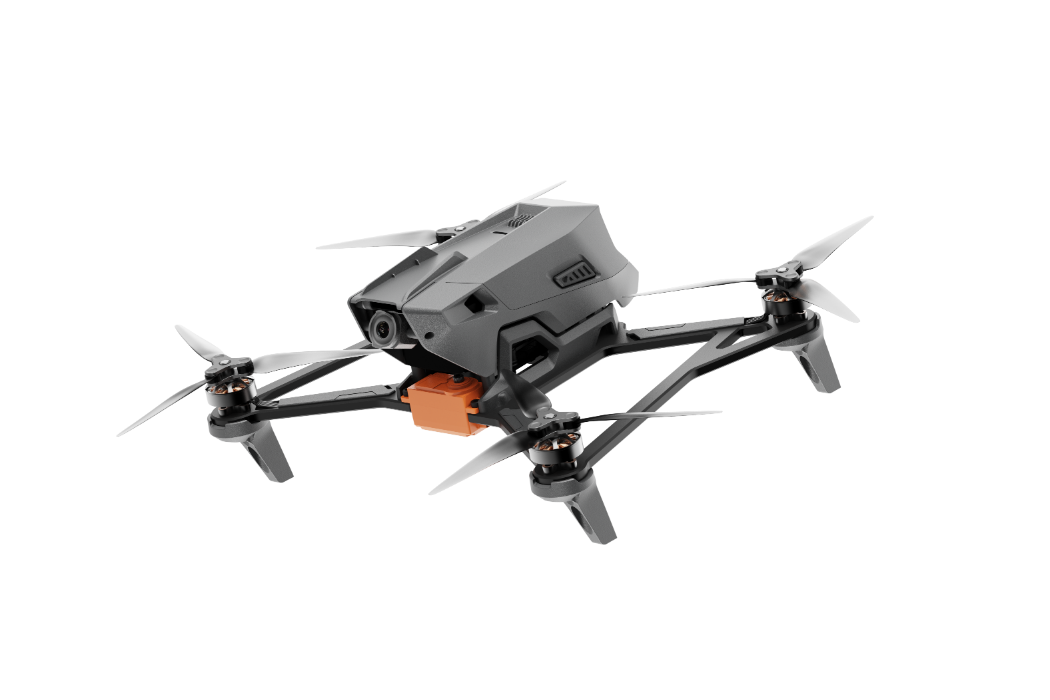

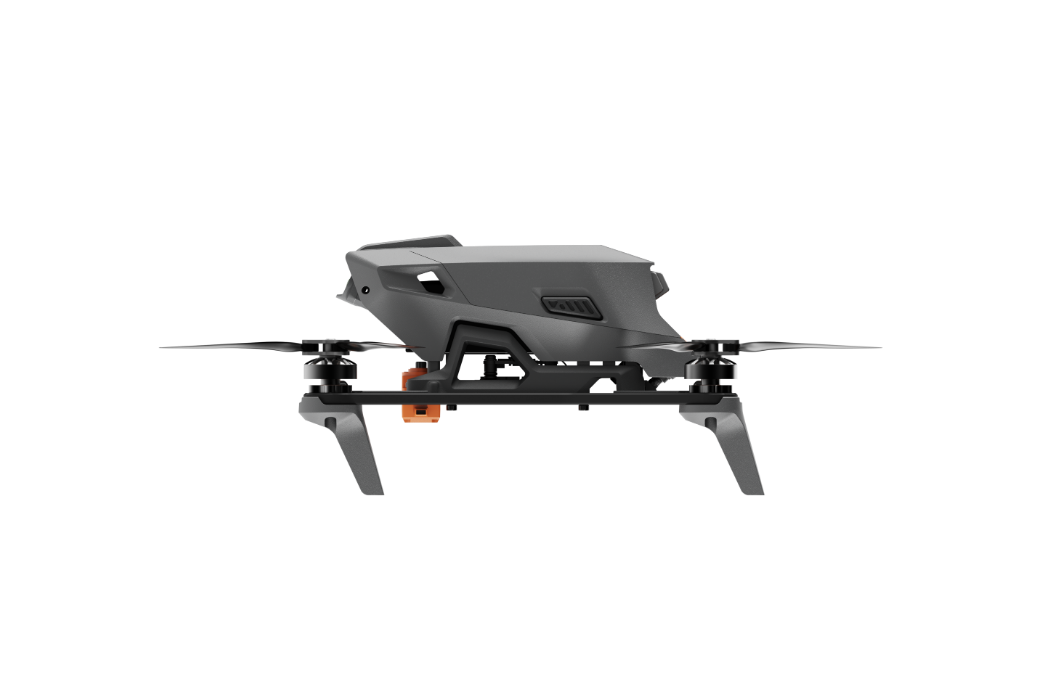

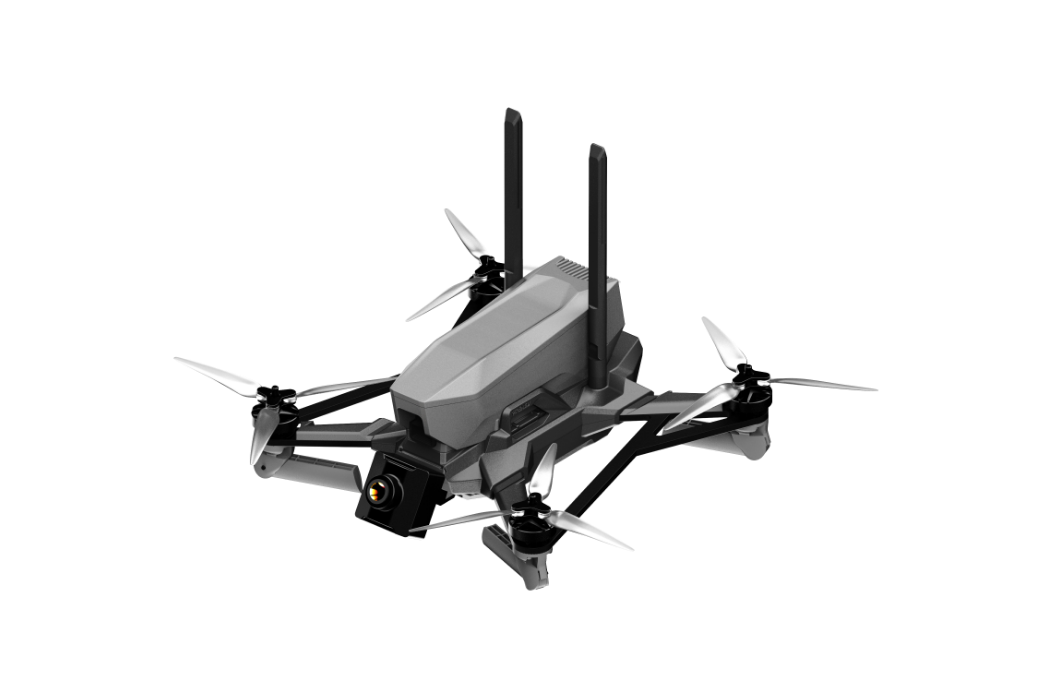

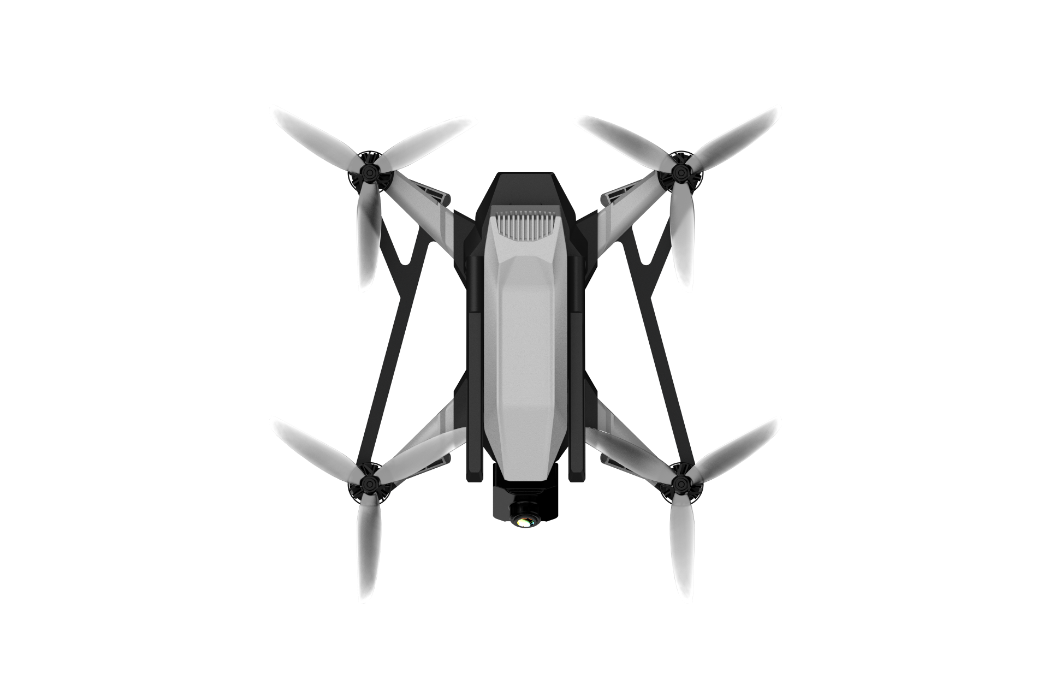

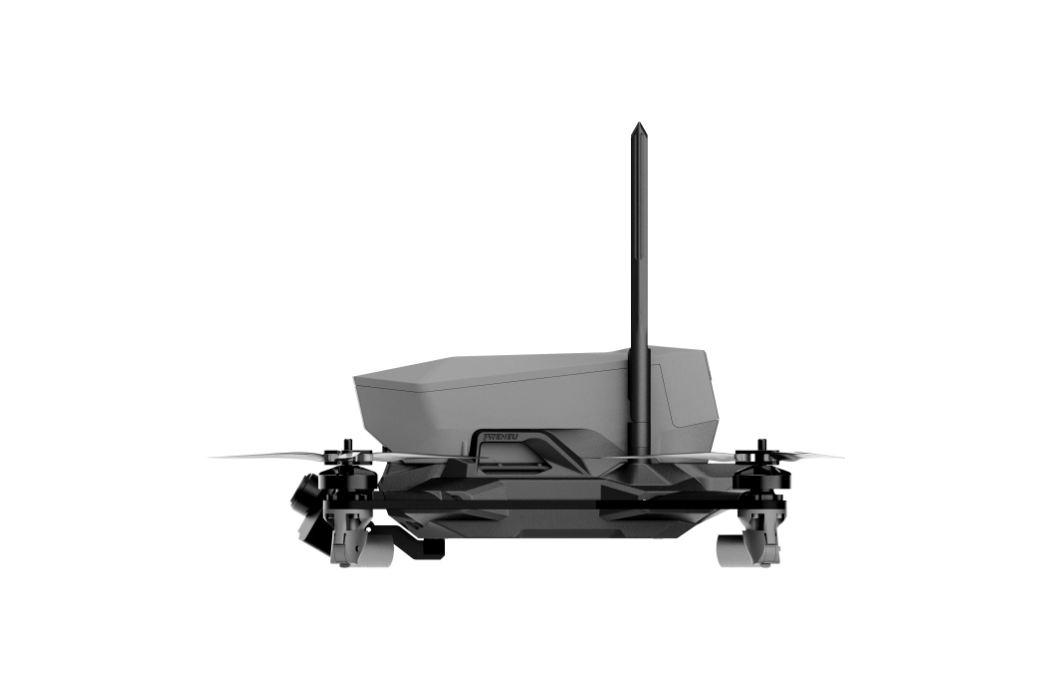

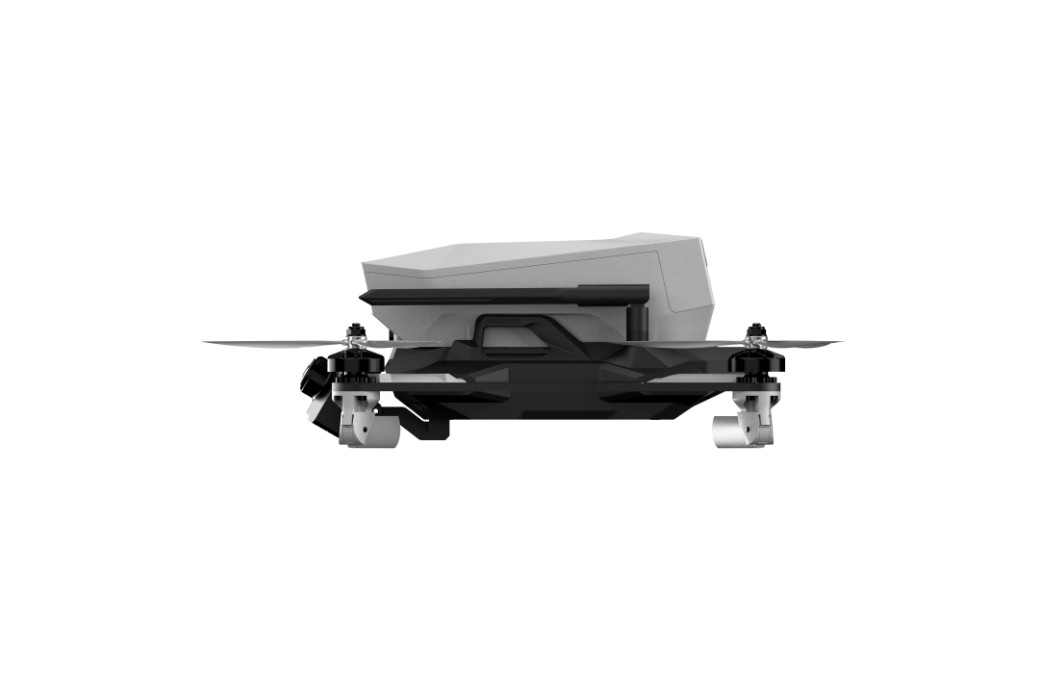

PANDION Q330
Ultra-Compact Loitering Strike Drone
A next-generation tactical solution capable of conducting precision reconnaissance and immediate strike operations against targets inside buildings and trenches—beyond the effective throwing range of conventional grenades.
Leveraging the high maneuverability of an ultra-compact platform, the system enables target identification and engagement within 5 seconds.
Performance & Competitive Advantages
- Ultra-compact and lightweight design allows individual soldiers to conveniently carry up to three units
- Compatible with standard-issue military grenades, maximizing logistical efficiency while overcoming range limitations of manual deployment
- Extended operational range of up to 3 km and flight endurance of over 15 minutes enables preemptive reconnaissance and precision strike against forward threats
- High-speed flight capability of up to 100 km/h ensures rapid response to dynamic battlefield conditions
- 100% domestically developed core components and software, optimized for operational environments of the Republic of Korea Armed Forces
User-Centric Design
- Designed to operate without removing the safety pin while carrying explosives, effectively preventing accidental detonation during preparation and flight
- Equipped with domestically developed FPV goggle technology, providing an optimized user interface and stable control environment
- Integrated secure communication module ensures mission execution without data leakage in sensitive operational environments
Activate Module Equipped

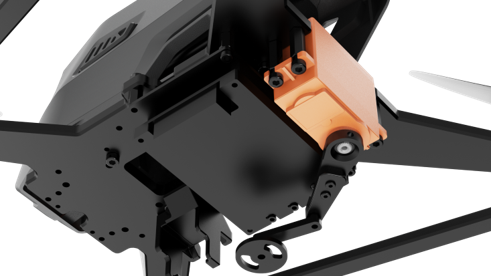

Safety Pin / Clip Removal Module Integrated
Modular System Architecture
- Frame and canopy can be freely expanded or reconfigured based on mission requirements
- Specially designed canopy module allows quick and easy battery replacement

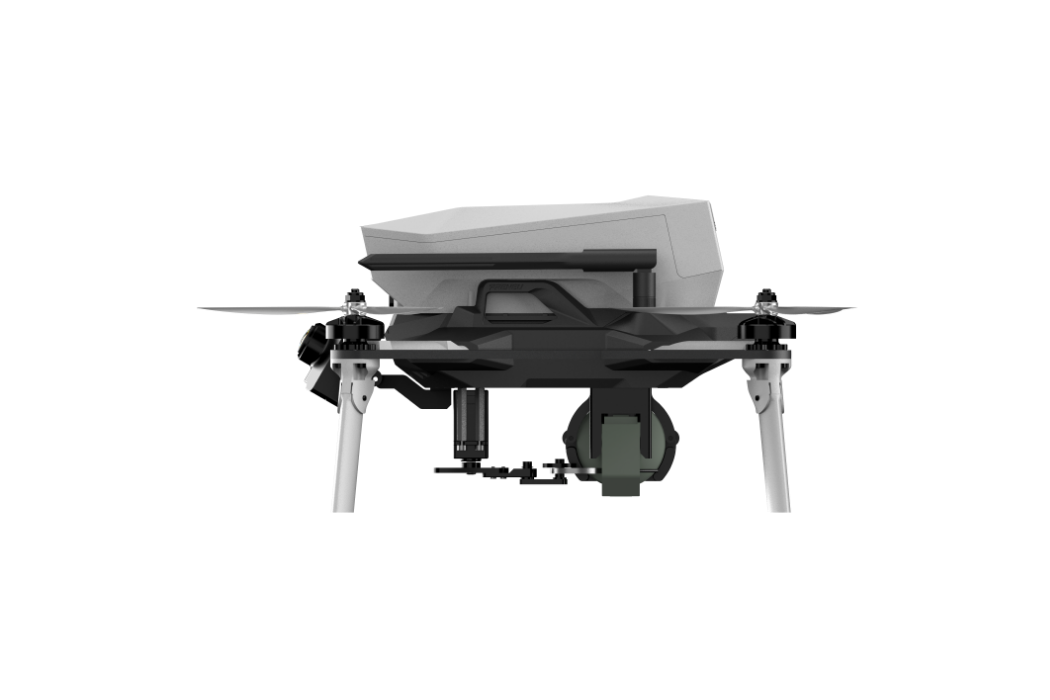

- Capable of deploying not only grenades, but also fire suppression devices, aerial drop devices (ADD), and other mission-specific payloads for multi-role operations including rescue, firefighting, and strike missions
- Single-frame modular design enables rapid replacement of communication modules and mission payloads
Specification
| MTOW | 2kg ± 0.1kg |
|---|---|
| Payload | 0.4kg ± 0.1kg |
| Dimensions | 270 × 270 × 220 mm |
| Flight Time | ≥ 15 minutes (with grenade payload) |
| Image Transmission Range | ≤ 1km |
| Operating Temperature | -20°C to 40°C |
| Operating Altitude (AGL) | ≥ 50m |
| Wind Resistance | Up to 10m/s |
| Communication | RF (2.4GHz / 5.5–5.8GHz) |
Payload Camera
FWC-EX2-307
- Size
- 42 × 42 × 51 mm
- Resolution
- 1080p 1920 × 1080
- Weight
- 67g
