D-GCS-P7
Next-Generation Compact Portable GCS
A Linux-based portable GCS engineered with an ergonomic architecture, delivering a stable and mission-ready operating environment through a high-brightness display and precision control system.
Its modular design enables flexible adaptation to diverse operational environments and security requirements.
Core Product Identity
· Open Linux Architecture
· Field-Optimized Portability
· High-Brightness Industrial Display
· Precision Analog Control System
D-GCS-P07 Channel
S-Grip Ergonomic Structure
Optimized S-Grip ergonomic design refined through years of professional drone pilot feedback
Human-Centered Design
· S-Grip Ergonomic Structure
· Extended Operation Architecture
· External Output & Secure Data Handling
· Accessory Expansion (Optional)

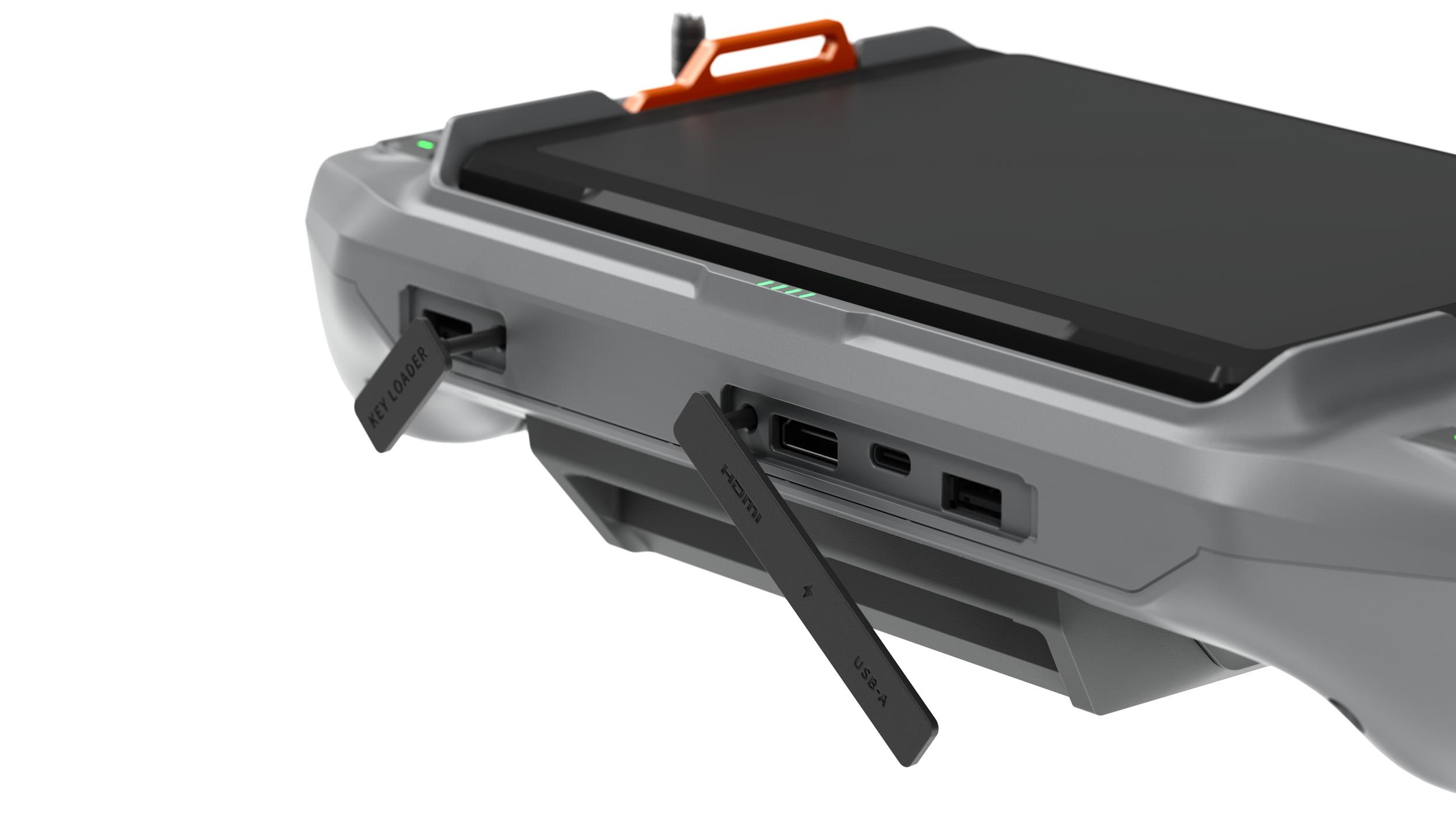

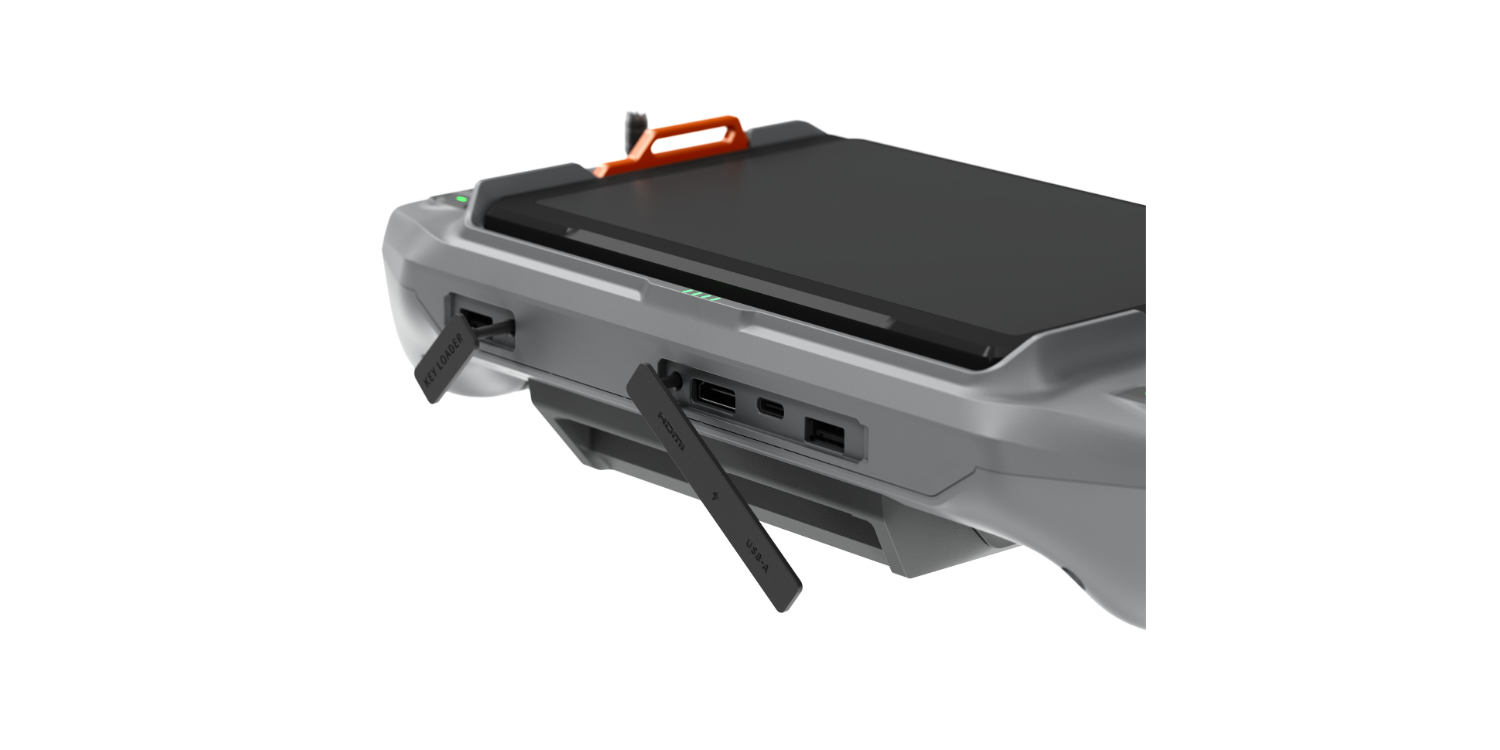

External Output & Secure Data Handling
External display output and internal data backup supported via top-mounted external ports

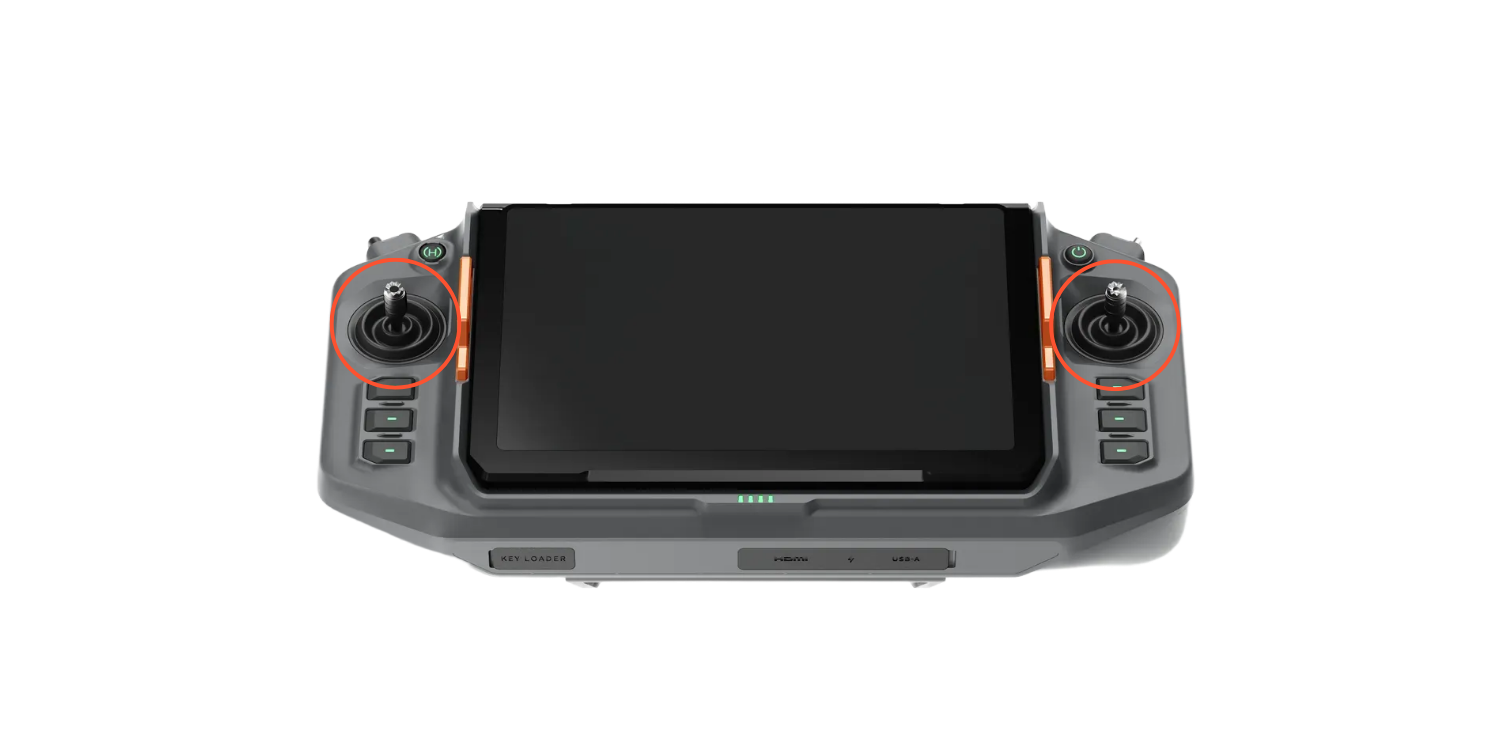

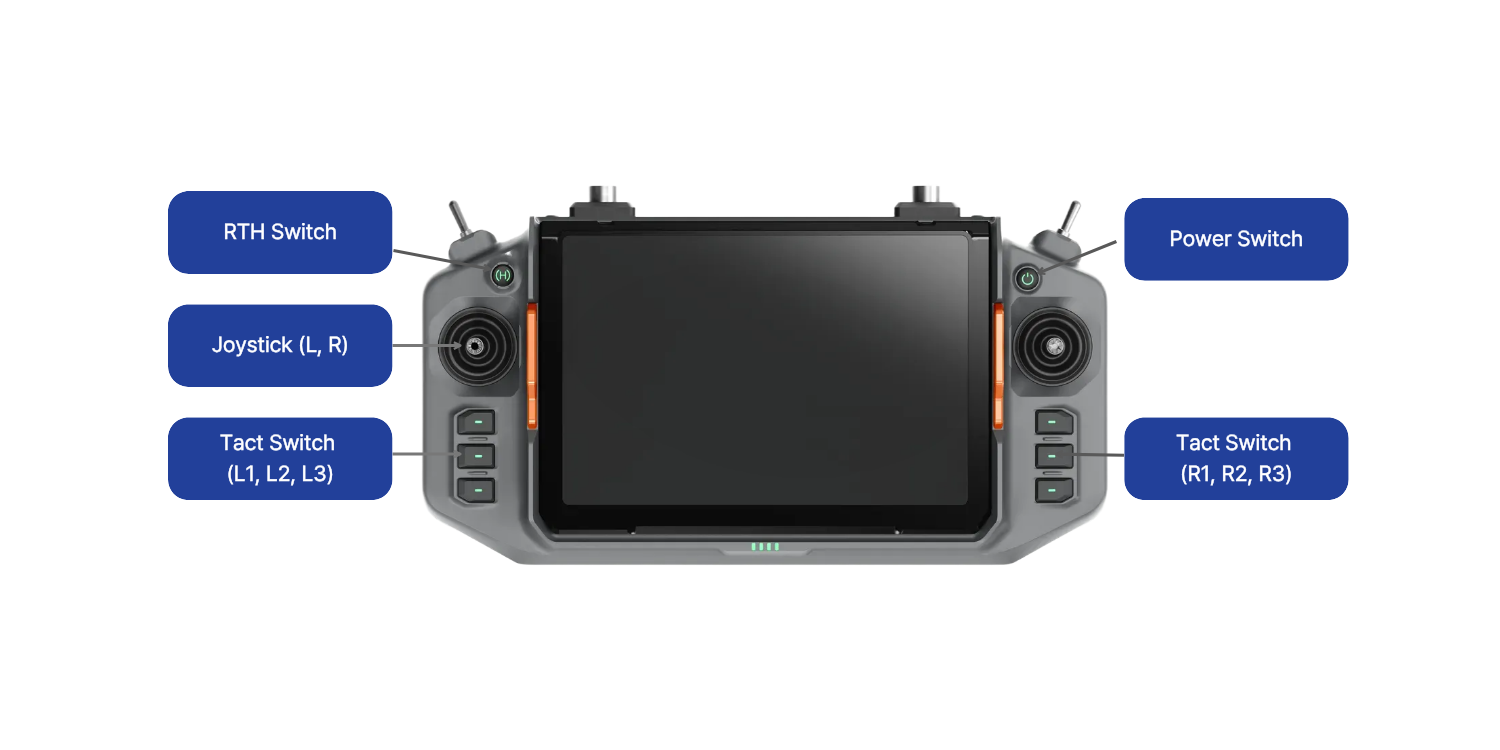

Precision Analog Control System
High-precision analog input joysticks for refined, pilot-level flight control
Modular System Architecture
· Security Module Integration
· Interchangeable Communication Interface
· Modular Component Structure

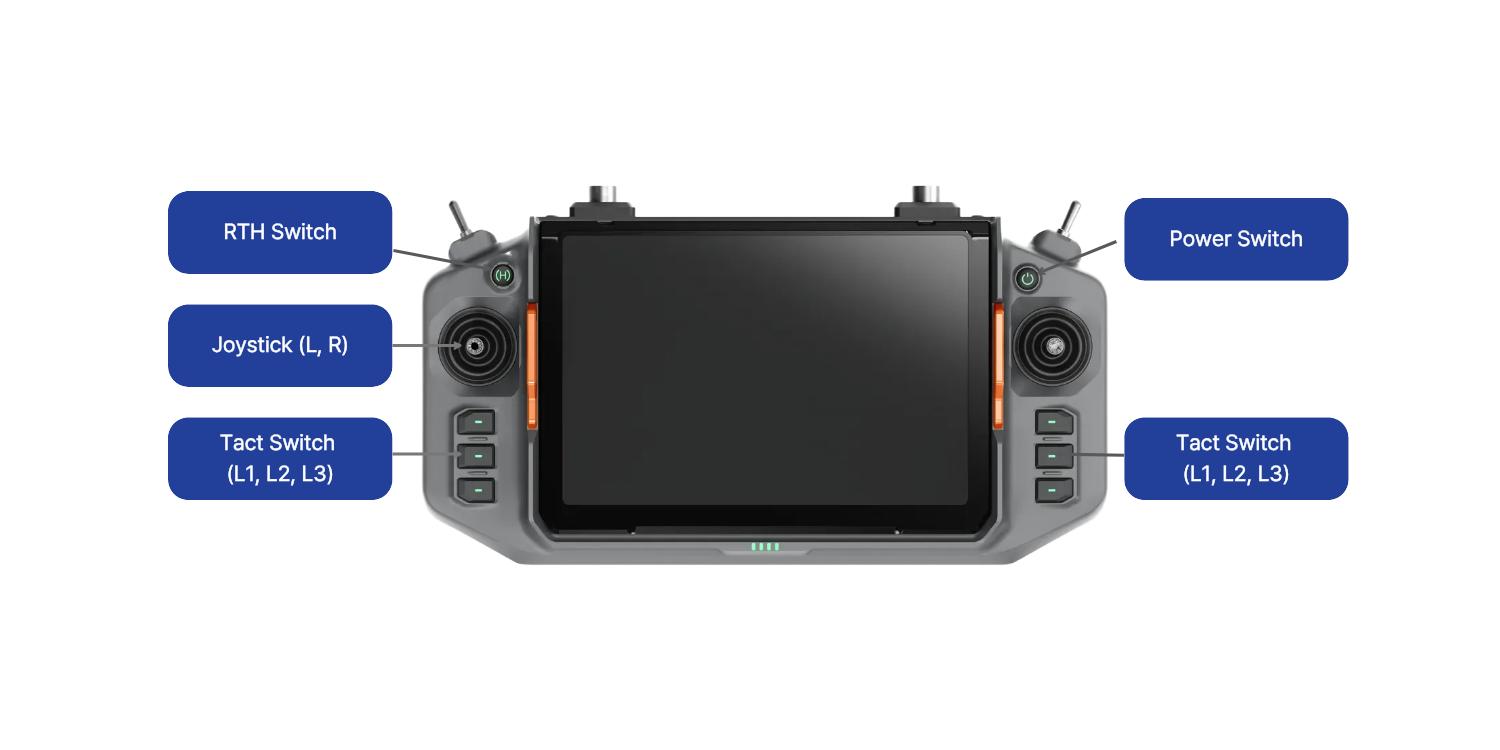

· Configurable Control Modules
· Antenna Interface Flexibility

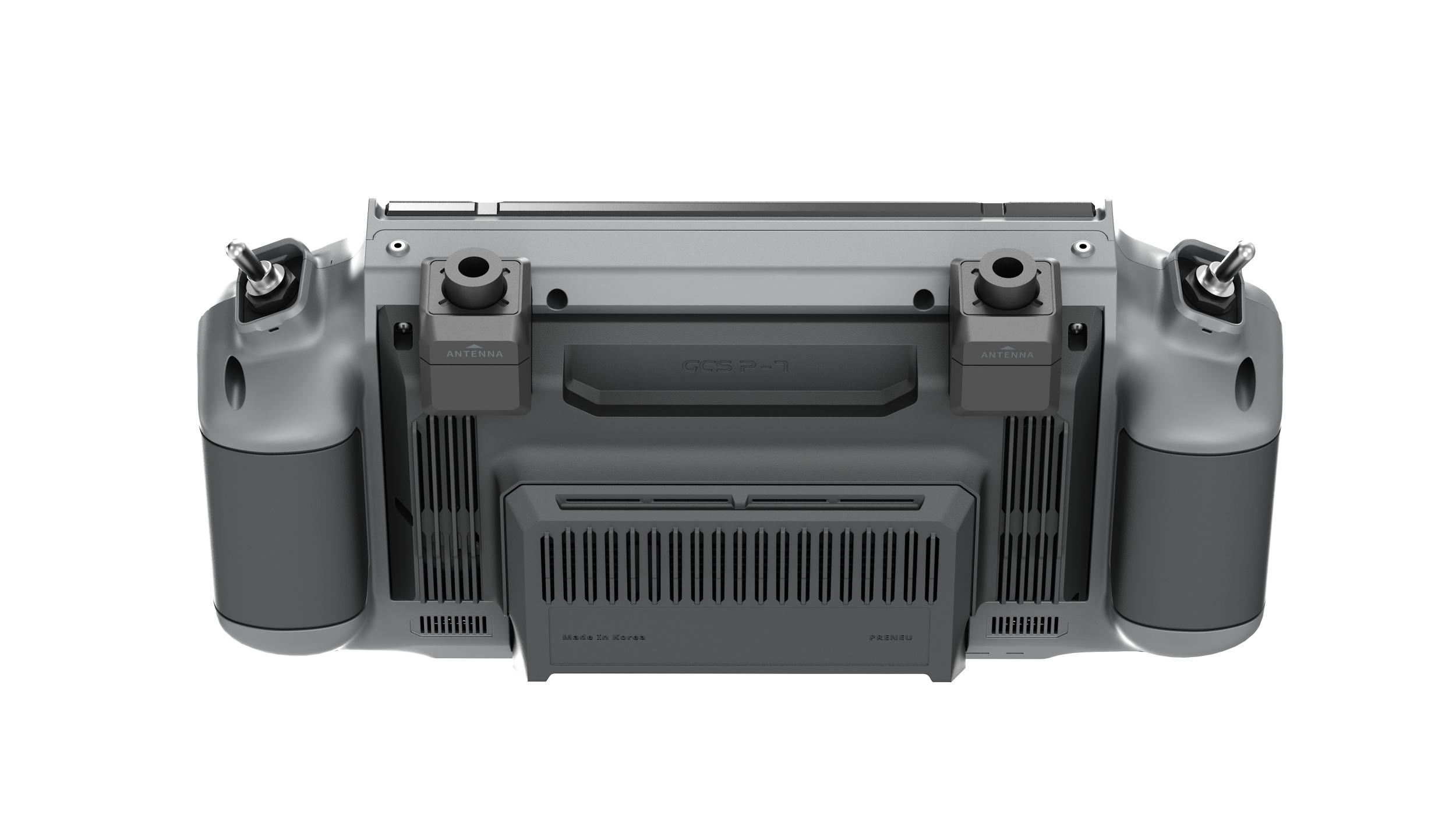

Interchangeable Communication Interface
Communication module integration

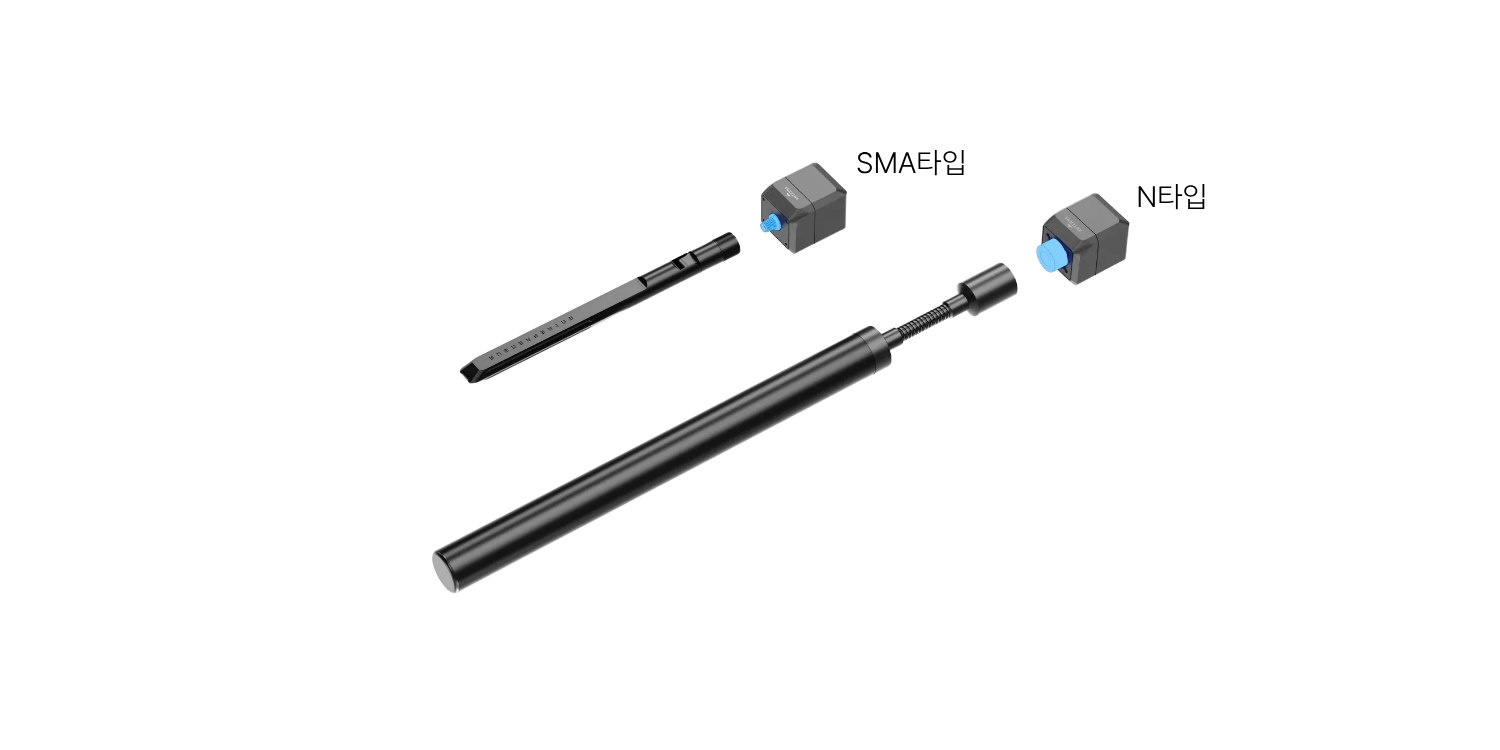

Antenna Interface Flexibility
Interchangeable antenna connector module
Specification
| Weight | 2.3kg (w/o Ant) |
|---|---|
| Size | 305 x 170 x 76 mm |
| CPU | Amlogic A311D Octa-Core(4x Cortex-A73+4x Cortex-A53 |
| GPU | Mali-G52 MP4 (OpenGL ES 3.2, Vulkan 1.0 지원) |
| RAM | 16GB DDR5 SO-DIMM 2 x SO-DIMM slots (Expandable up to 96GB) |
| SSD | 256GB - M.2 2280 NVMe PCIe 5.0 x4, Up to 8TB supported - M.2 2280 NVMe PCIe 4.0 x4, Up to 2TB supported |
| Network | [Wired LAN] Intel I226-V 2.5GbE [Wireless LAN] Intel Wi-Fi BE201 (802.11be) 5.8Gbps (Excluded in military supply configurations) [Bluetooth] Bluetooth 5.4 (EDR up to 50Mbps) ((Excluded in military supply configurations)) |
| Operating System | Custom OS based on Linux Kernel 5.10 |
| Internal MCU | [MCU] STM32F407VGT6 ARM Cortex-M4 (168MHz) [Flash] 1MB [SRAM] 192KB [ADC] 9 Channels, 12-bit (Precision analog joystick input) [INTERFACES] USB OTG FS/HS, SPI, I2C, UART, CAN |
| External I/O | [USB-A] Up to 2 x USB 2.0 (Military supply configuration: 1 x USB 2.0 + 1 x KCMVP Key Injector) [HDMI] 1 x 1.4 HDMI [LAN] 1 x Intel I226-V 2.5GbE [DC 5V] 1 x DC 5V switching hub for flexible data link operation |
| Display | [Size] 7” [Panel Type] High-Brightness IPS LCD [Brightness] 1000cd/m² [Resolution] 1280 x 800 |
| Power | [Battery] 2x 7.2V 3350mAh Li-ion (Korea battery pack) [Charging] USB Type-C PD 30W supported [Operating Time] Approx. 6 hours |
