VTOL

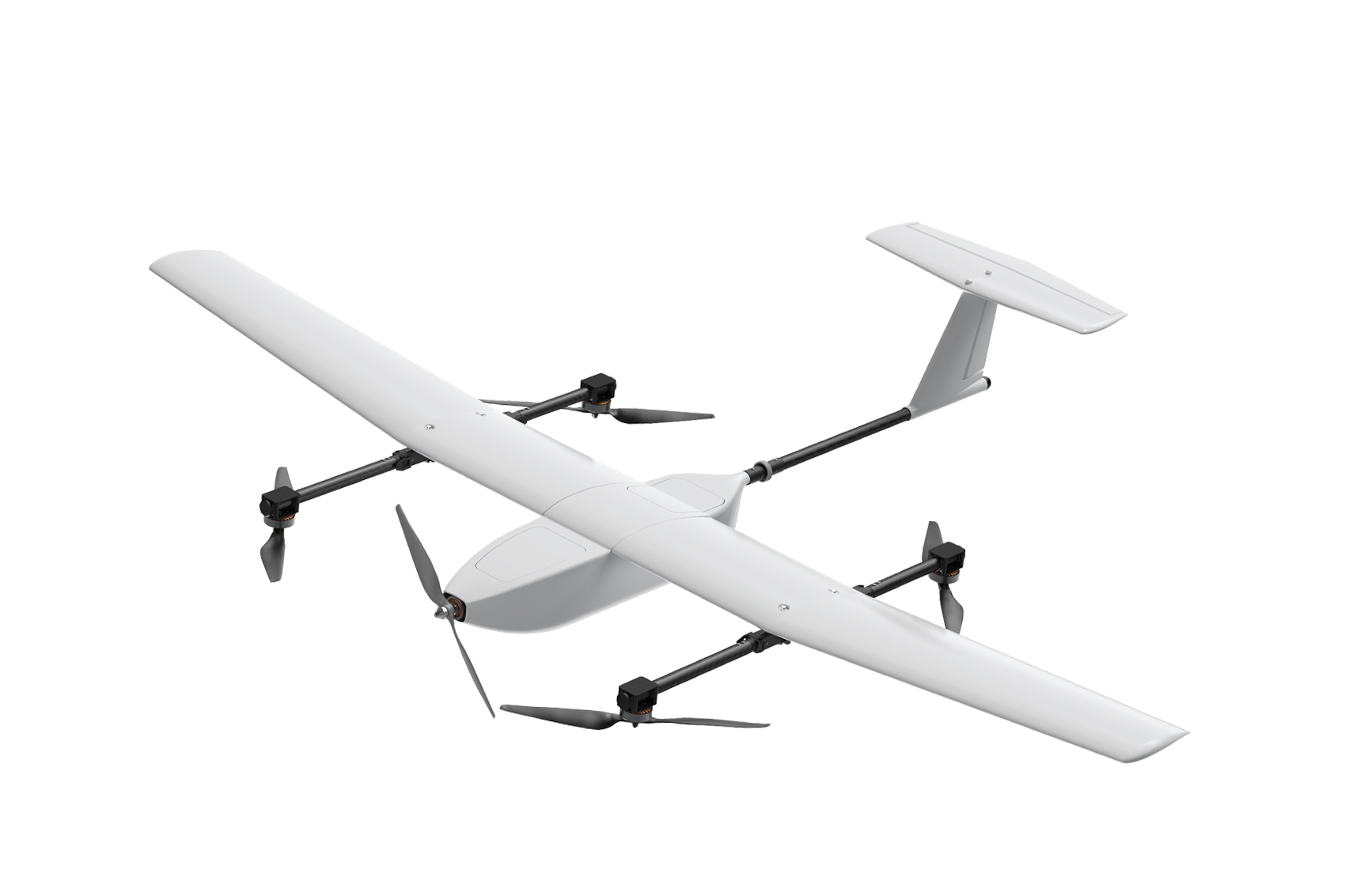

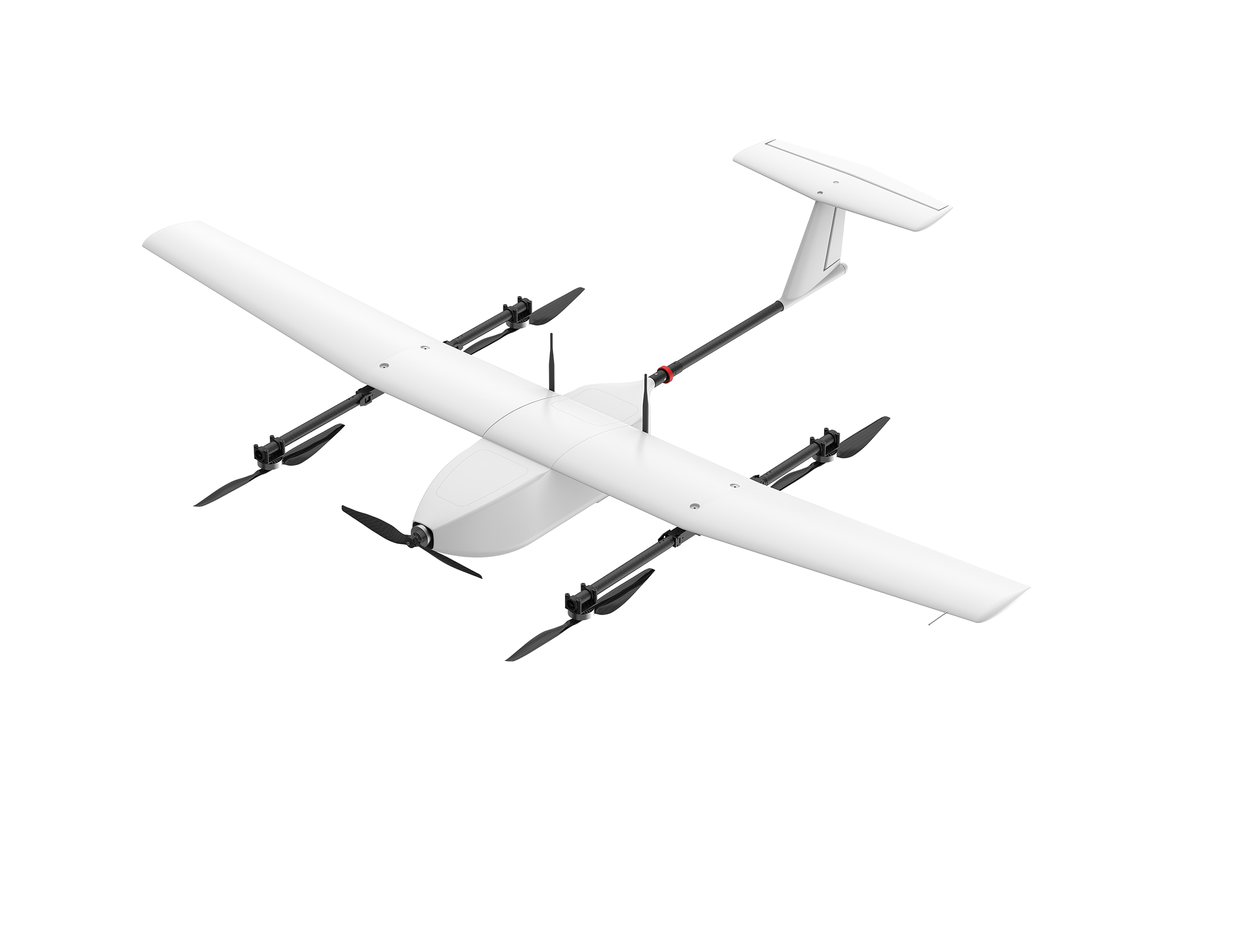

MILVUS T240
Compact-size VTOL Fixed-Wing Drone
Compact & Lightweight Design for Quick Assembly & Disassembly, Maximizing Portability.
Small Fixed-wing Drone Specialized for Aerial Surveying, Surveillance, and Reconnaissance, ensuring Optimal Operation Without Space Constraints.
Specification
| Flight Time | 100min (No Payload) |
|---|---|
| Cruise Speed | 20m/s, 28m/s (Max) |
| MTOW | Under 12kg |
| Aircraft Size | 2432x1581x403mm |
| Max Payload | 1.5kg (Lidar Package) 0.6kg (Mapping Camera) |
| Range | 3km (Varies by Communication Equipment) |
| IP | IP43 |
| Weight | 6.5kg (Without Battery/No payload) |
| Application | Aerial Surveying, Reconnaissance, High-Resolution Picture/Video, Payload Drop |
| Battery | Li-PO 12S 22,000mAh (Battery Weight : 3.85kg) |
Payload Camera

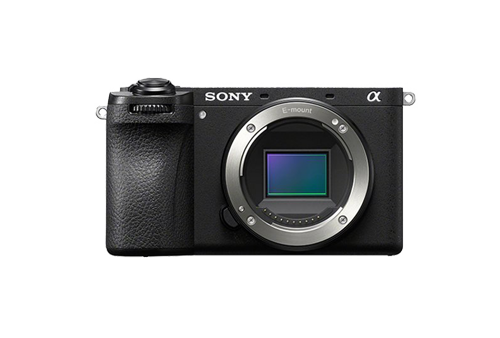

Interchangeable Lens Camera
- Resolution
- (3:2)6000 × 4000(24.3MP)
(16:9)6000 × 3375(20.1MP)
- Weight
- 285g
- Size
- 120 x 66.9 x 45.1mm (Excluding the protrusion)
- Pixel
- About 24.3 MP(Effective)
About 24.7 MP (Total)
Product Payload
A

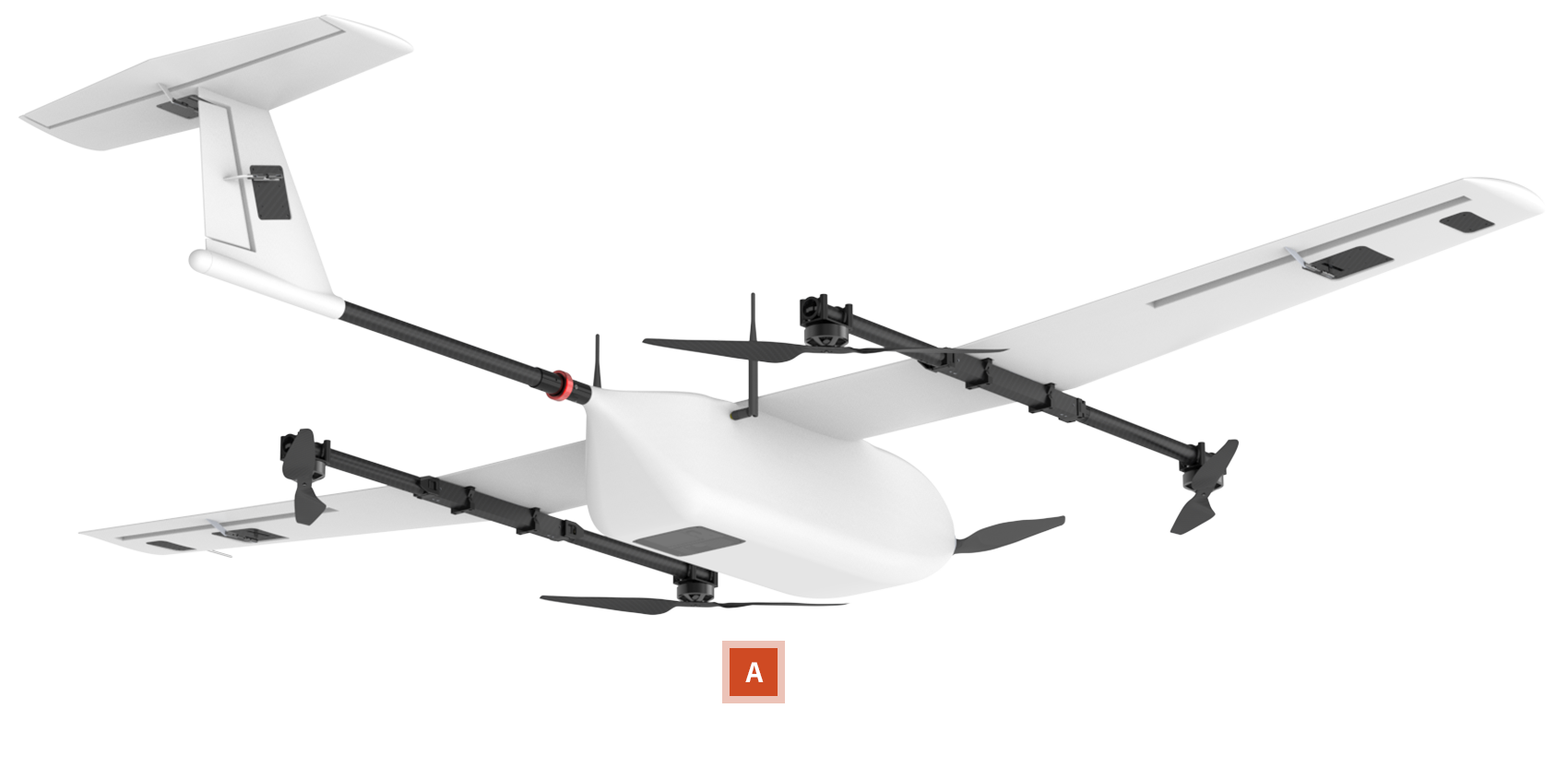

Camera
A

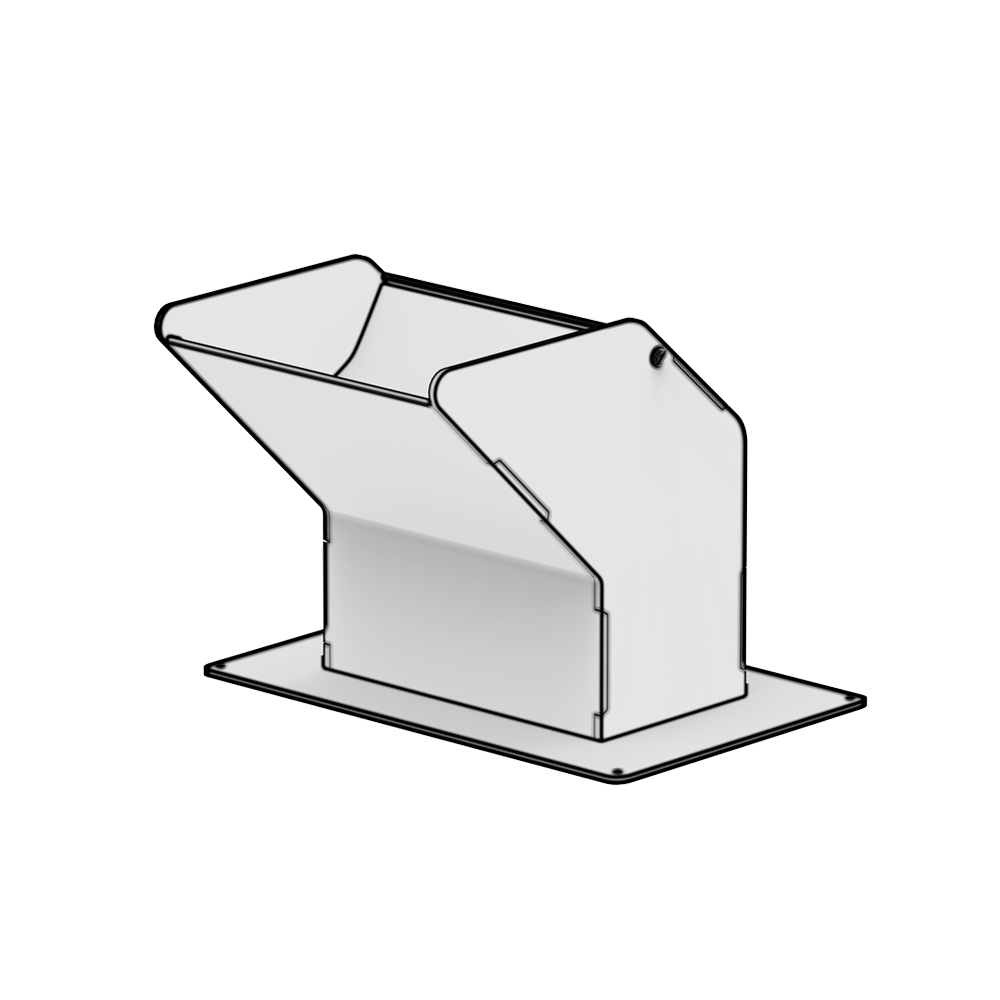

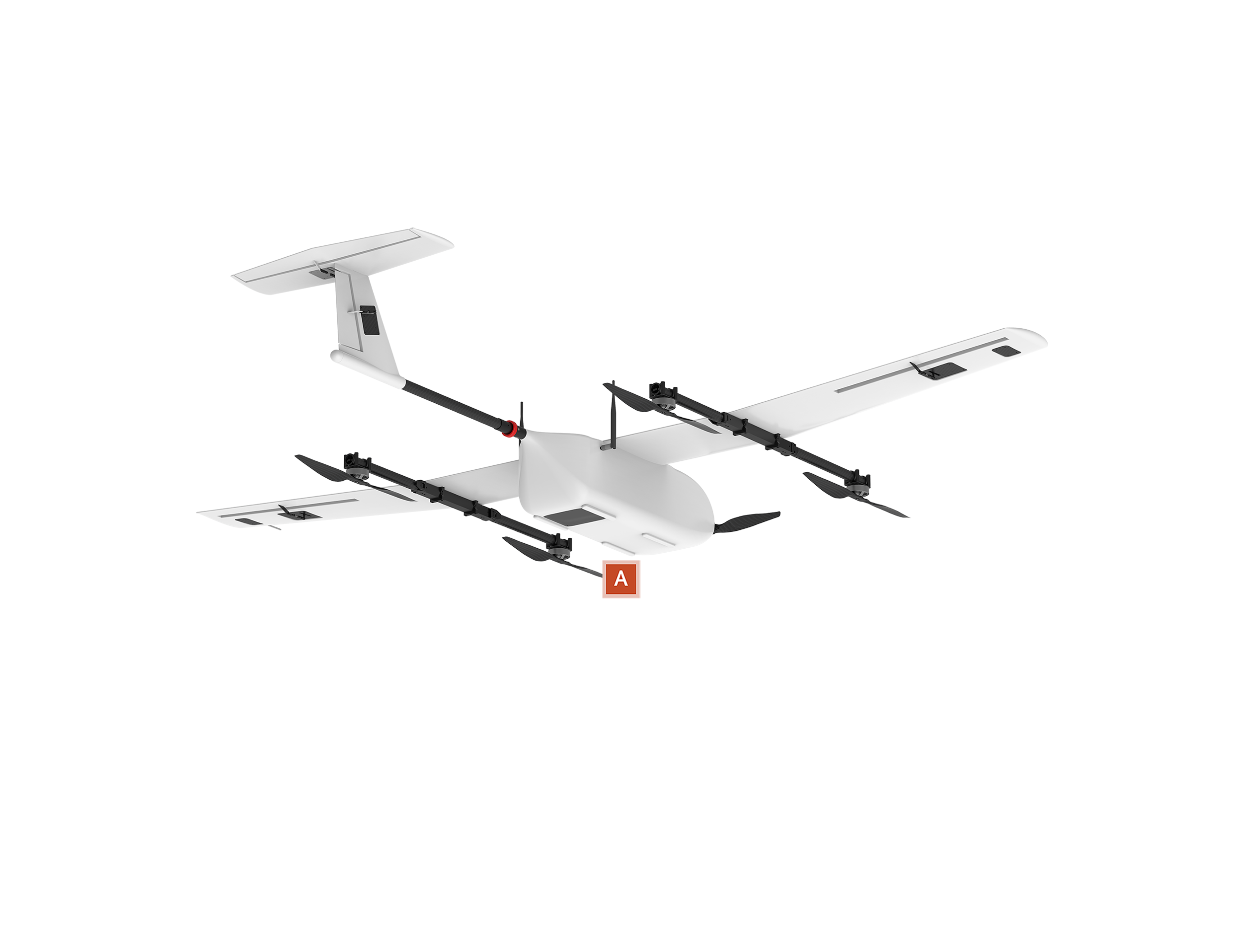

Dropping Device
