Helicopter
RUEPEL EF

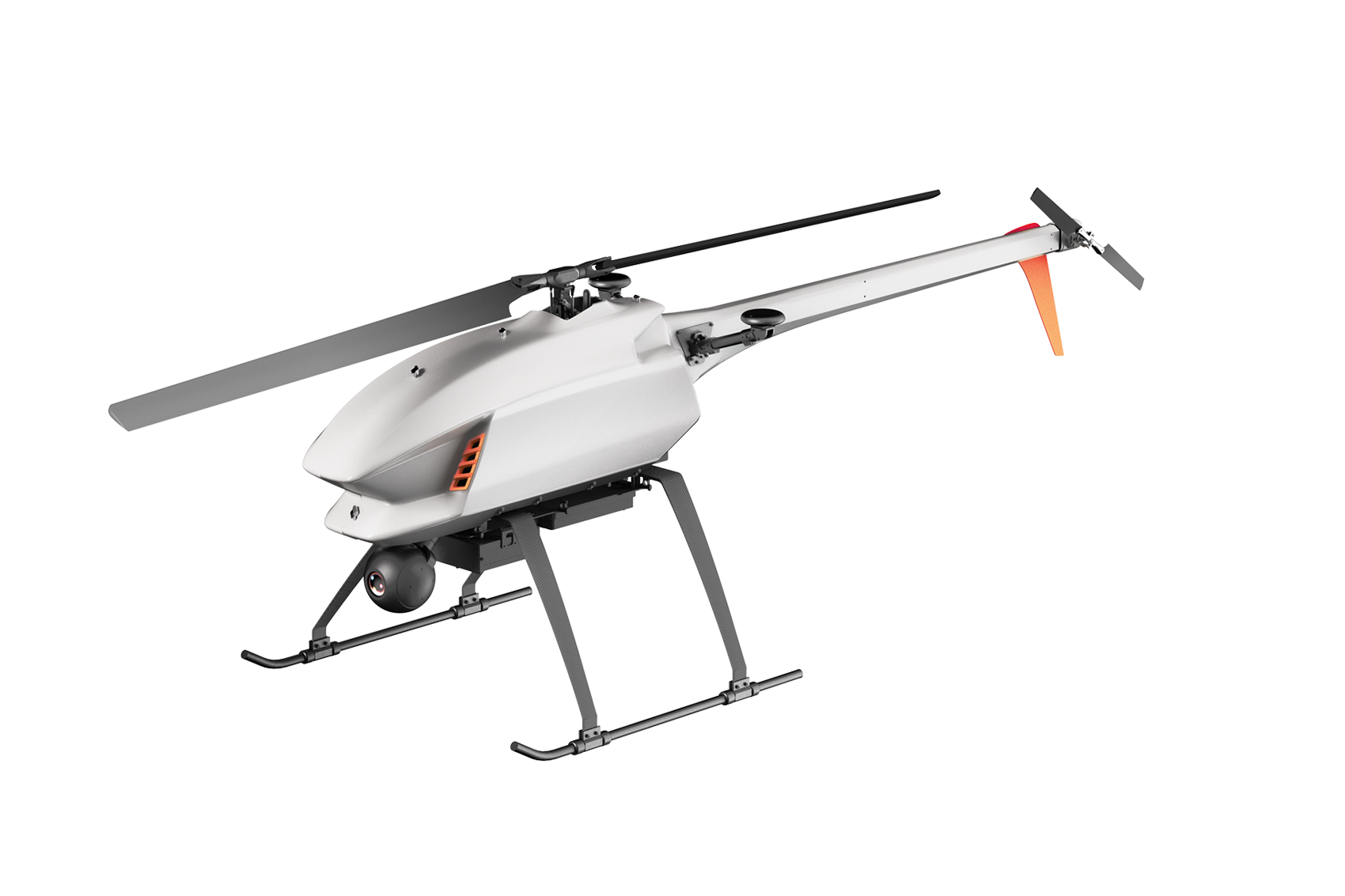

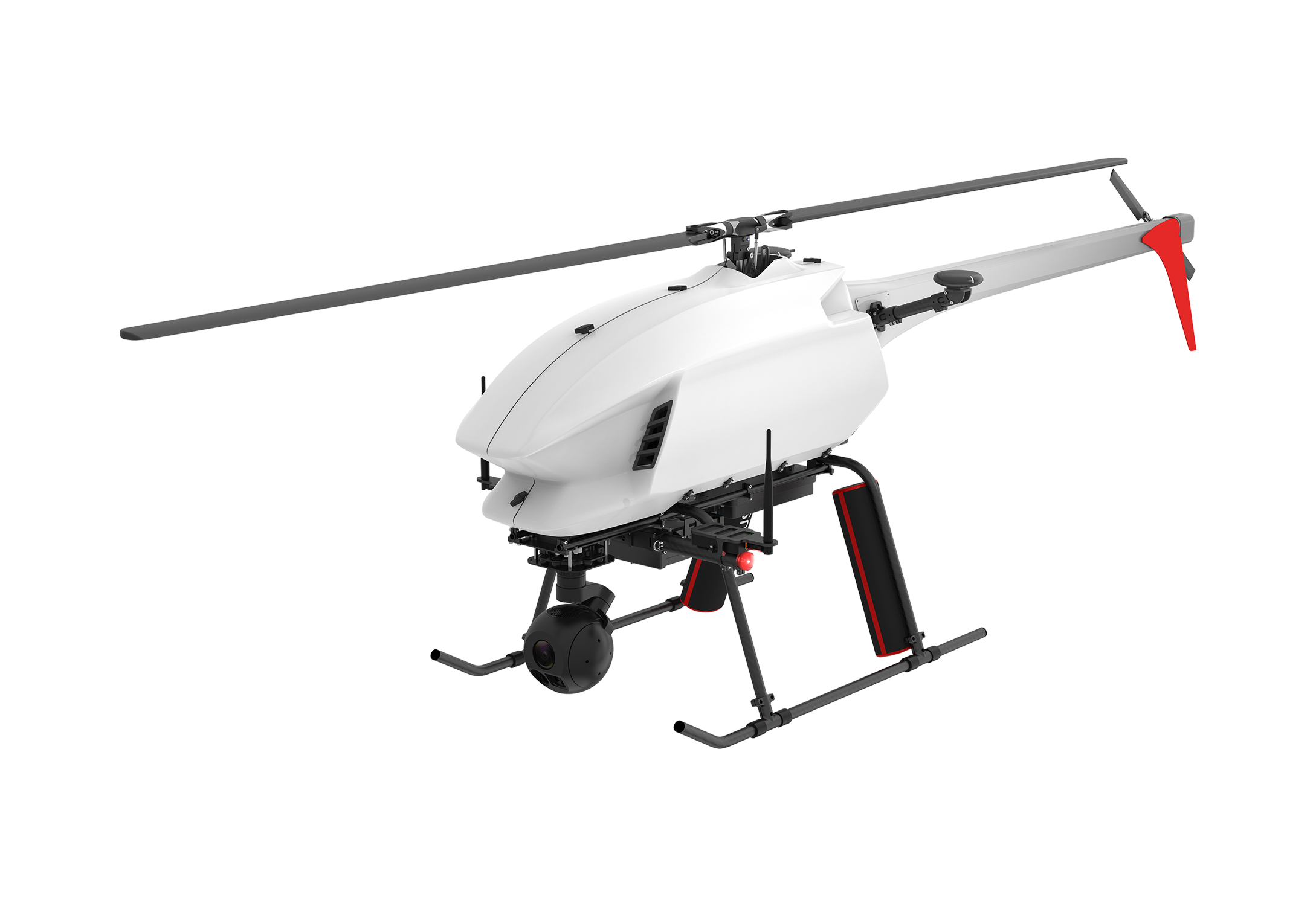

All-in-One Drone for Specialized Equipment
A compact helicopter designed for special missions such as surveillance, reconnaissance, search, and rescue in challenging environments, including strong-wind maritime and mountainous regions.
Specification
| Flight Time | 75min (No payload) |
|---|---|
| Cruise Speed | 22m/s |
| MTOW | 24kg (with Battery) |
| Aircraft Size | 1879 x 590 x 706 mm |
| Max Payload | 5.5kg |
| Range | 20km (Varies by Communication Equipment) |
| IP | IP43 |
| Weight | 11.4kg (Without Battery/No payload) |
| Application | Search&Rescue/Illegal Fishing Vessel Monitoring in High-Wind Maritime Areas |
Payload Camera
Gimbal Camera
- Zoom
- 40X Optical Zoom, 32X Digital Zoom
- Pixel
- 640X512 Detector Pixel
- Focus Length
- 19mm
- Foc Gimbal
- 3-axis Foc Gimbal
- Range
- 3km Laser Range finder
Auto Identification and Auto-tracking Camera
- EO
- 40X Optical Zoom, 32X Digital Zoom, 2.13MP / Full HD 1920X1080
- IR
- Focus Length : 35mm, Pixel : 640X512, Digital Zoom : 1~8X
- LRF
- 3000m Laser Range Finder Target GPS Coordinate Resolving
- AI
- Auto Identify and Tracking
Object Tracking Gimbal Camera
- EO
- 40X Optical Zoom, 32X Digital Zoom
- IR
- Focus Length : 19mm, Detector Pixel : 640X512, 3000m IR Laser Rangefinder
- AI
- Auto Identify and Tracking
- Resolution
- 640*512 12㎛ Thermal
- Pixel
- 2.13MP Effective Pixel

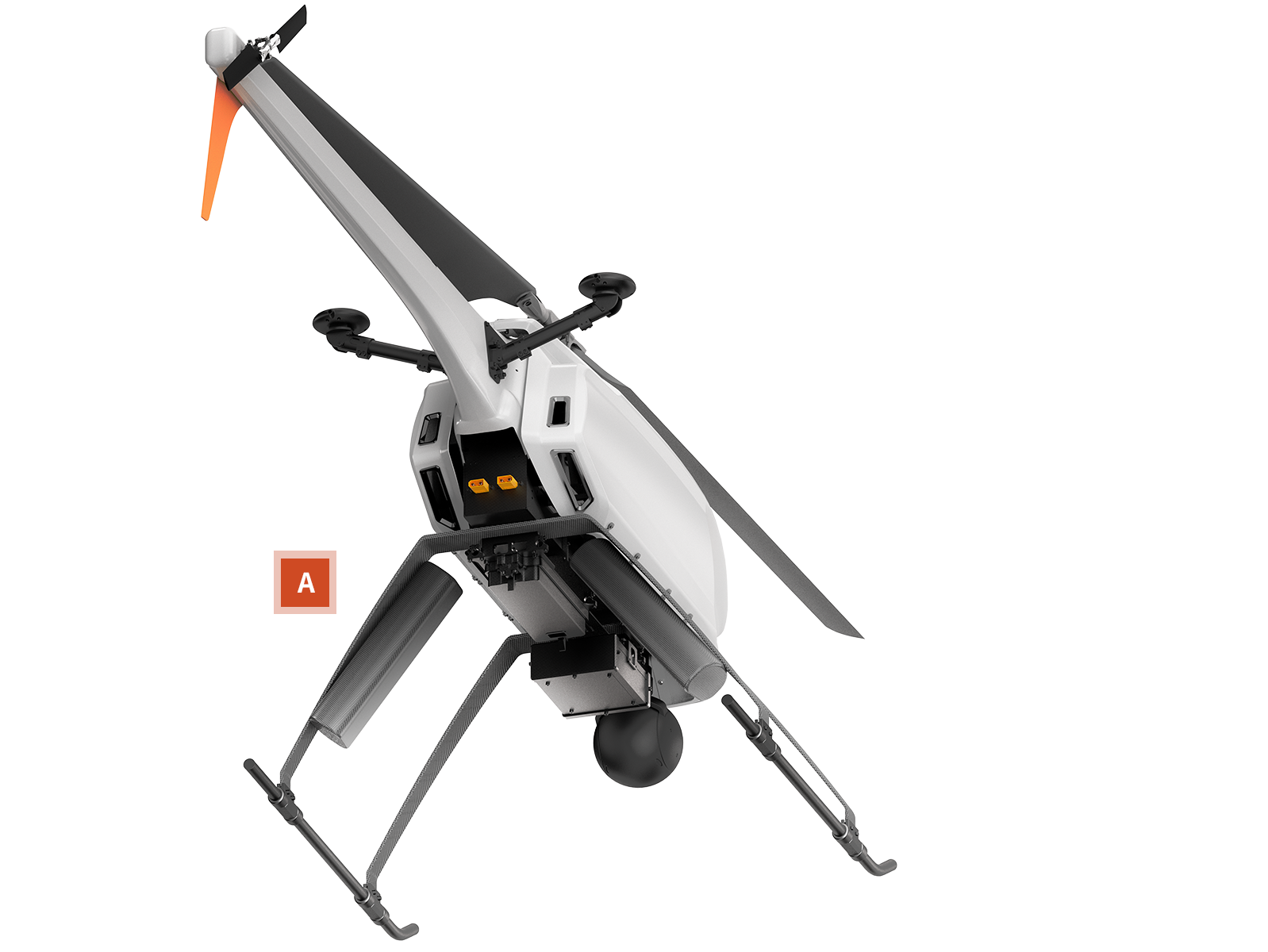

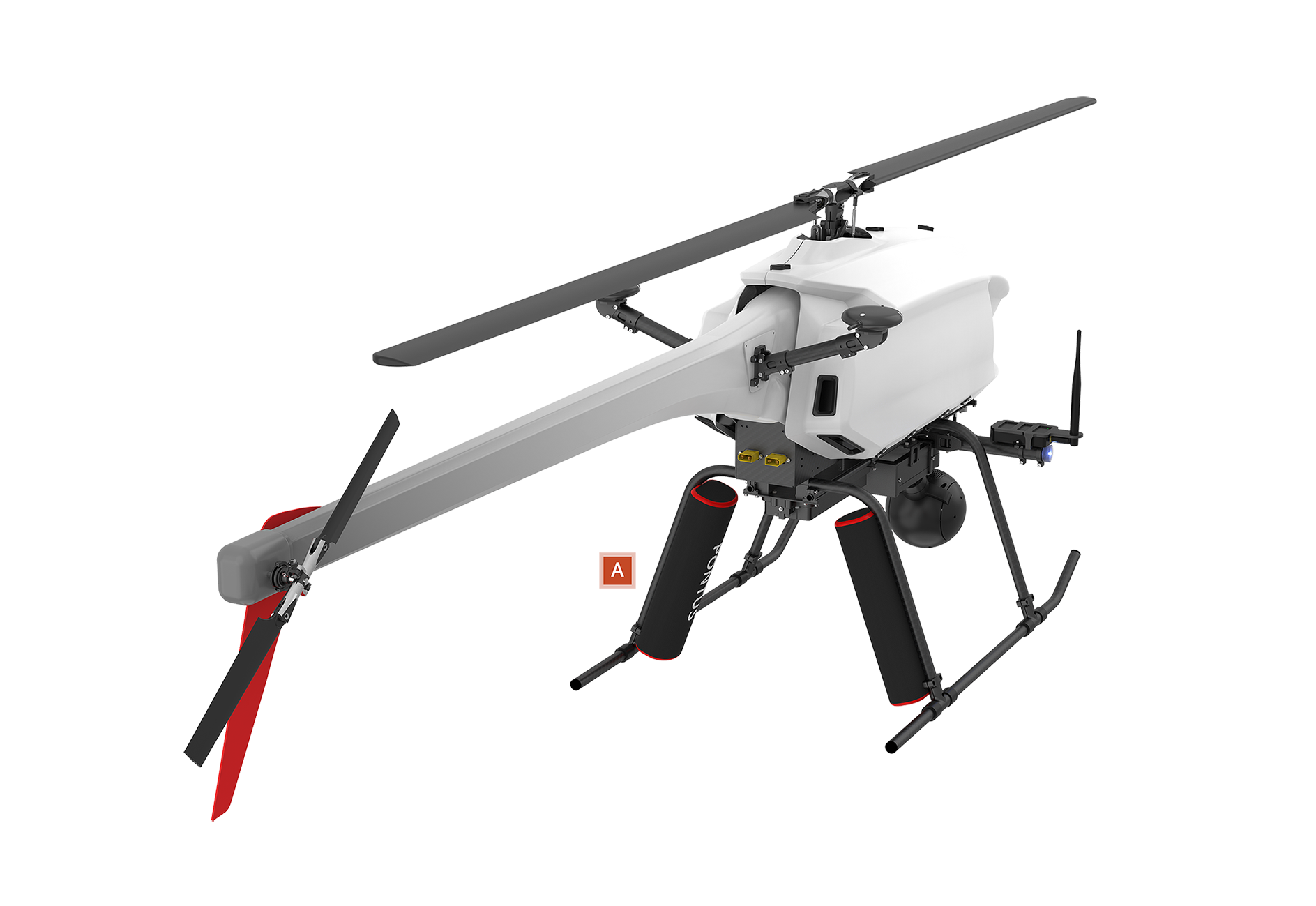

Product Payload
A
Buoyancy Device
